FAQ of Low Voltage Well Lights
Do Varmtalys well lights work with my existing 12V system?
Yes. They’re compatible with standard 12V AC/DC low-voltage transformers and outdoor-rated cables/connectors.
Are these safe to install in turf or paver decks?
Yes—use a core-drilled hole or sleeve, add drainage gravel, and set the trim flush with the surface. For pavers/driveways, choose models with the proper drive-over/static-load rating.
How do I minimize glare with in-ground uplights?
Choose shield/turret/graded tops or internal honeycomb filters, set fixtures slightly off-axis, and avoid placing them directly in common sightlines.
Can well lights mix with path/spot lights on one transformer?
Yes—keep the total load within capacity and design runs that balance length and wire gauge to maintain even brightness.
Are the LEDs replaceable?
Many in-grade models use integrated LED modules for sealing and reliability (see each product page for specifics). If integrated, the LED is non-replaceable; select service parts vary by model.

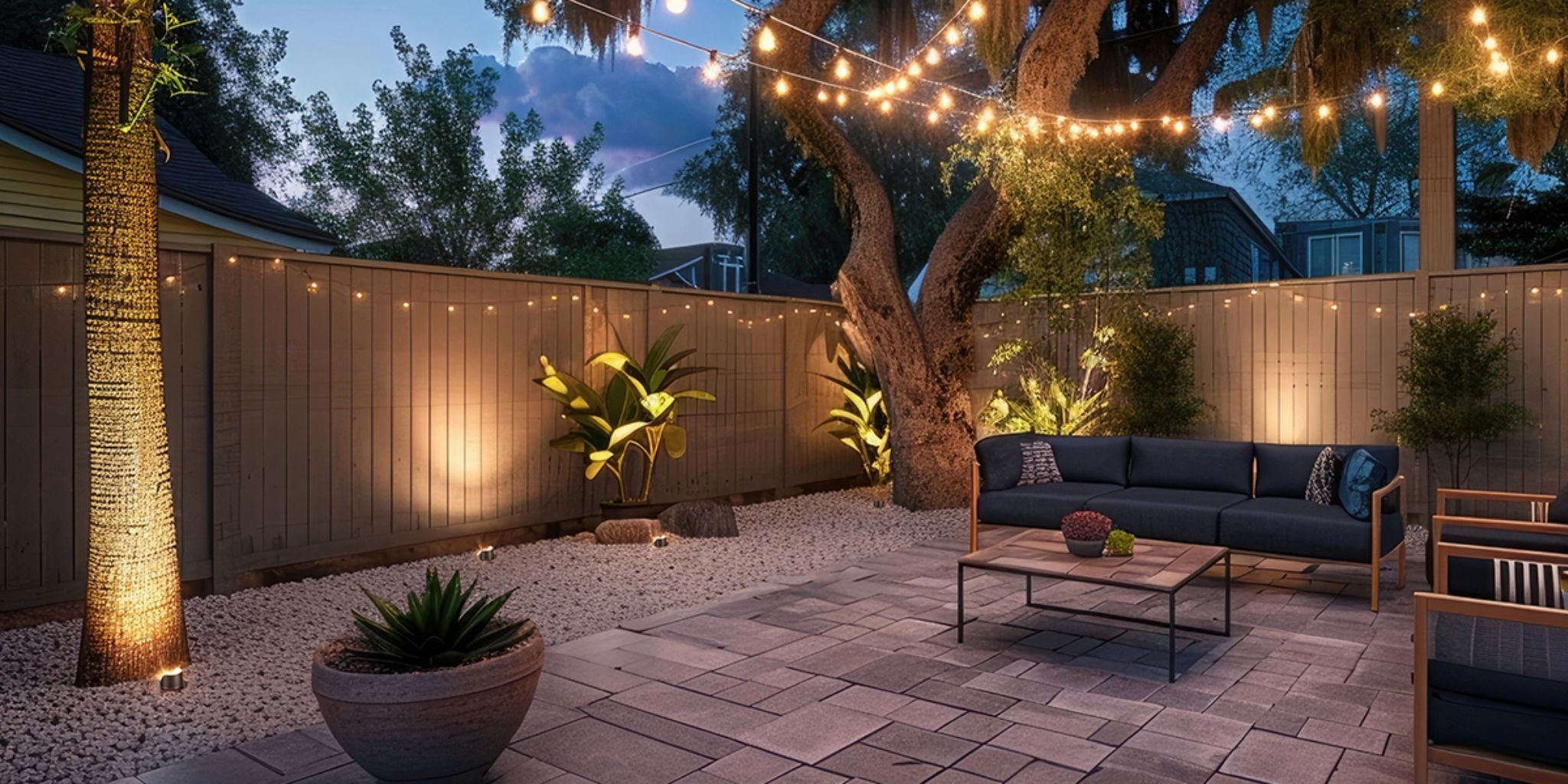

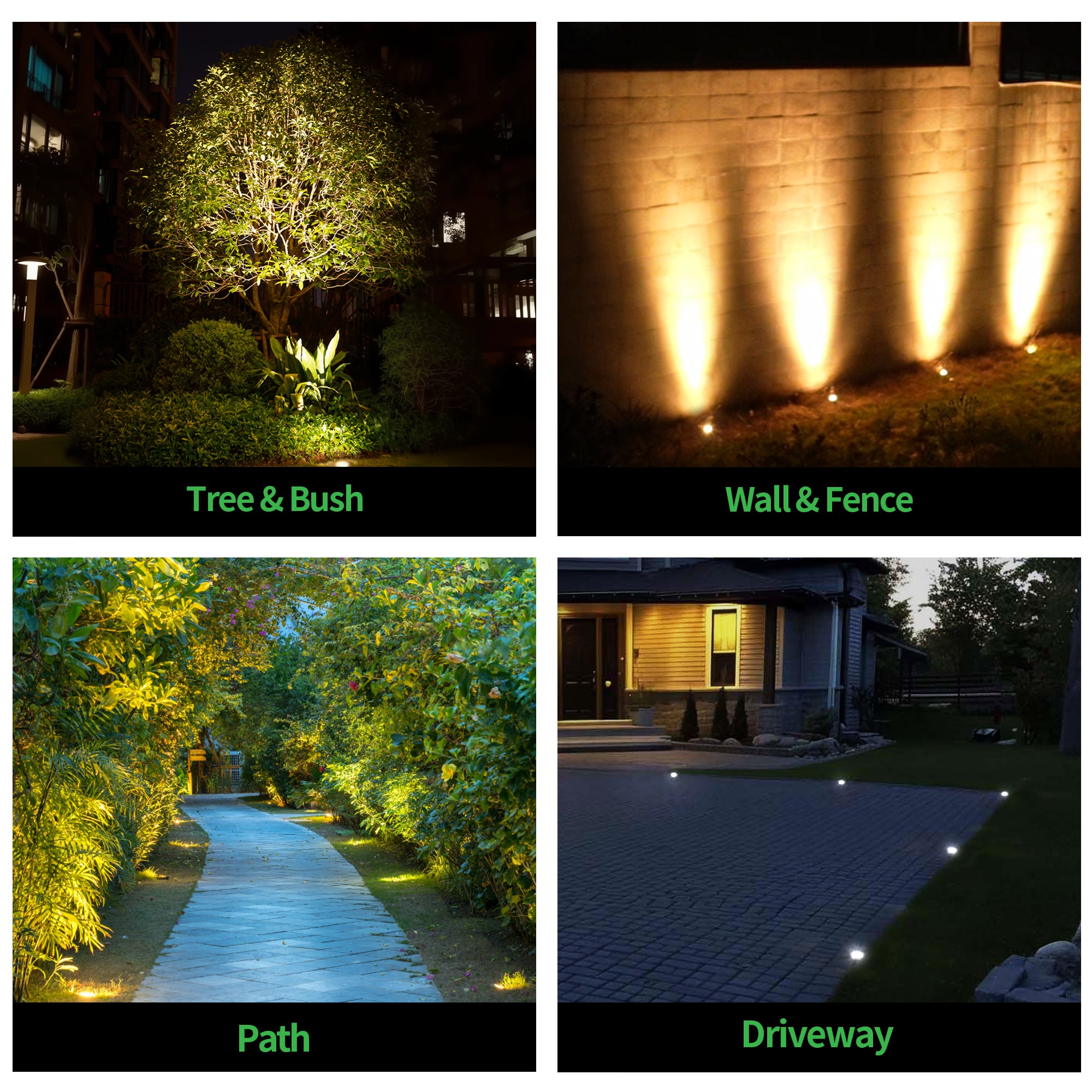

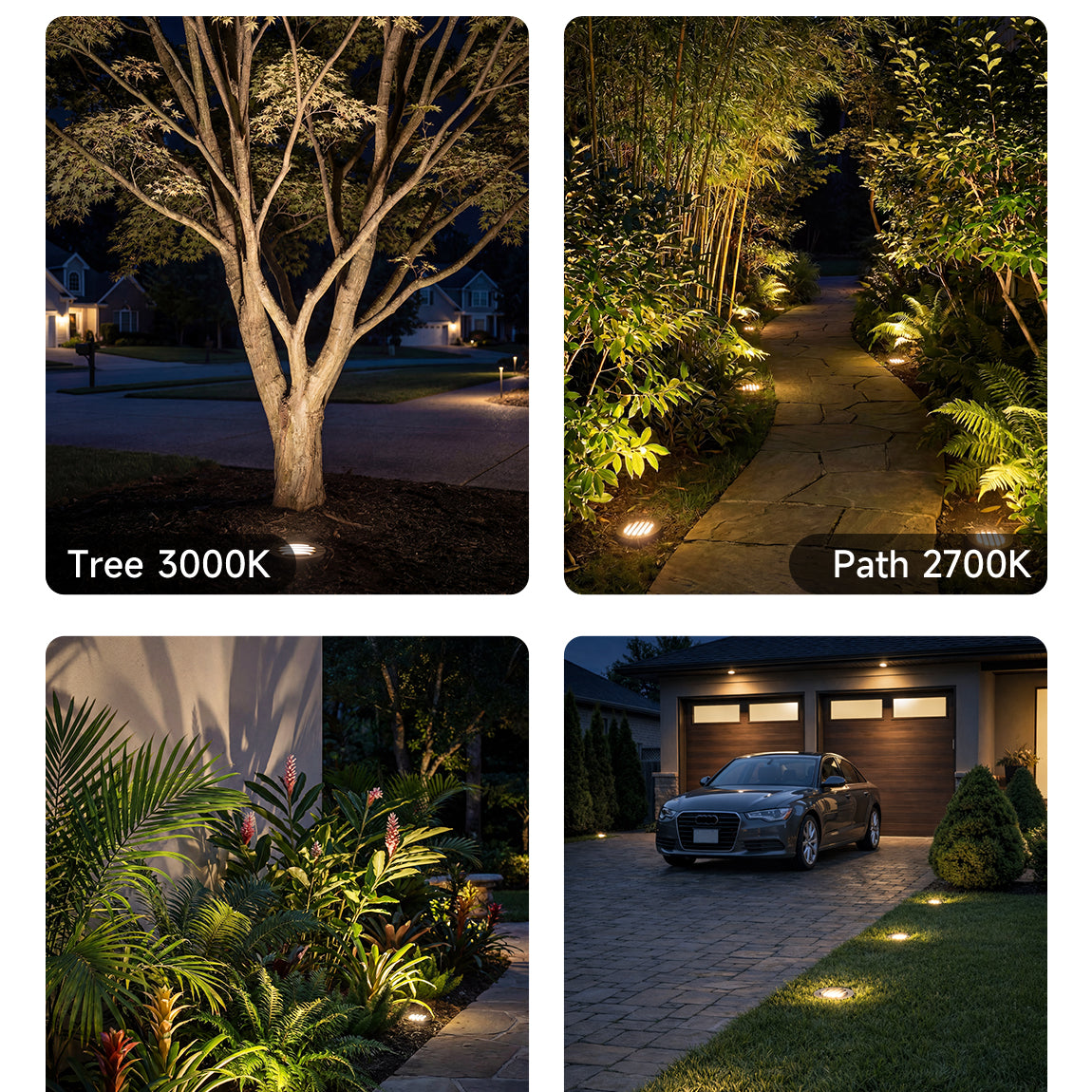

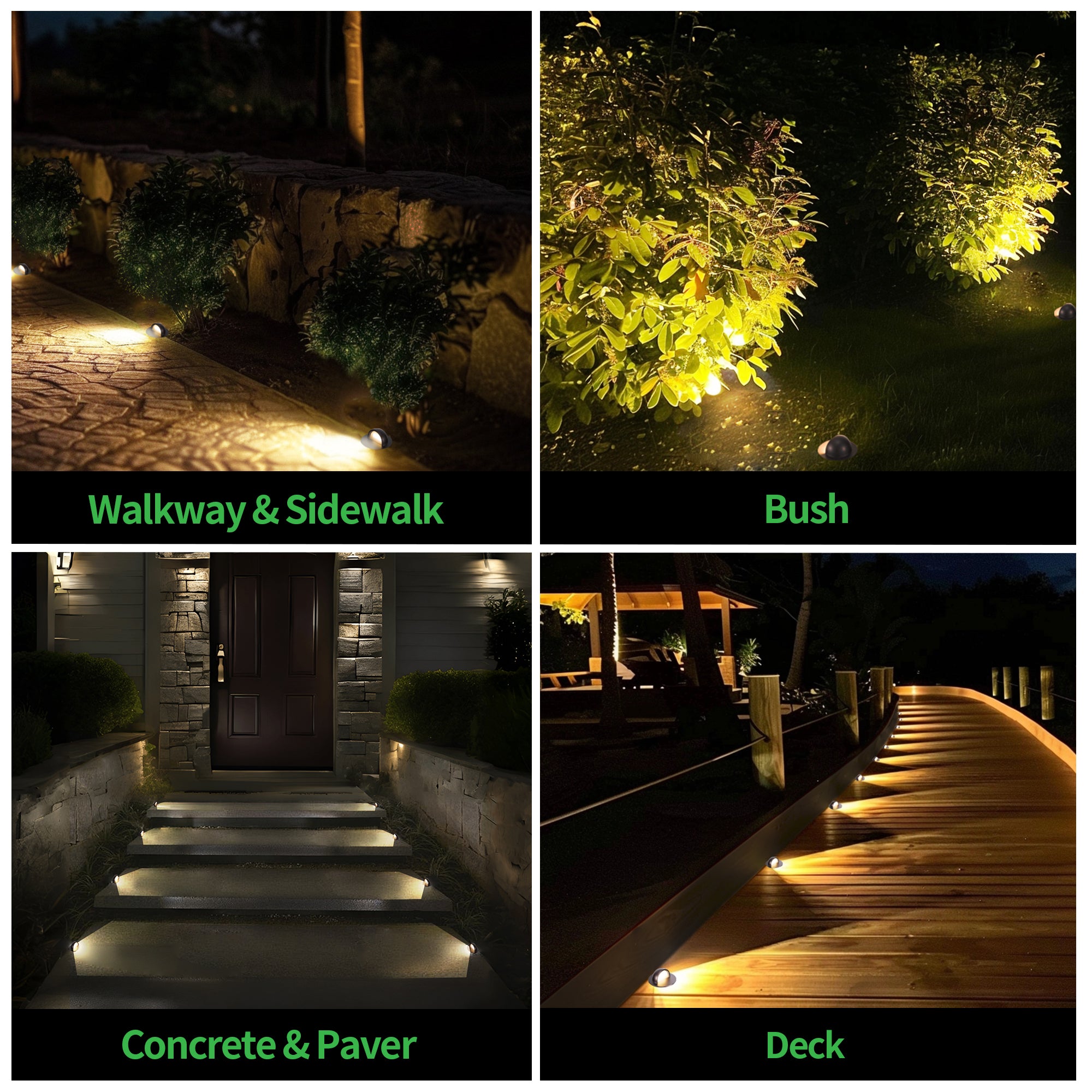

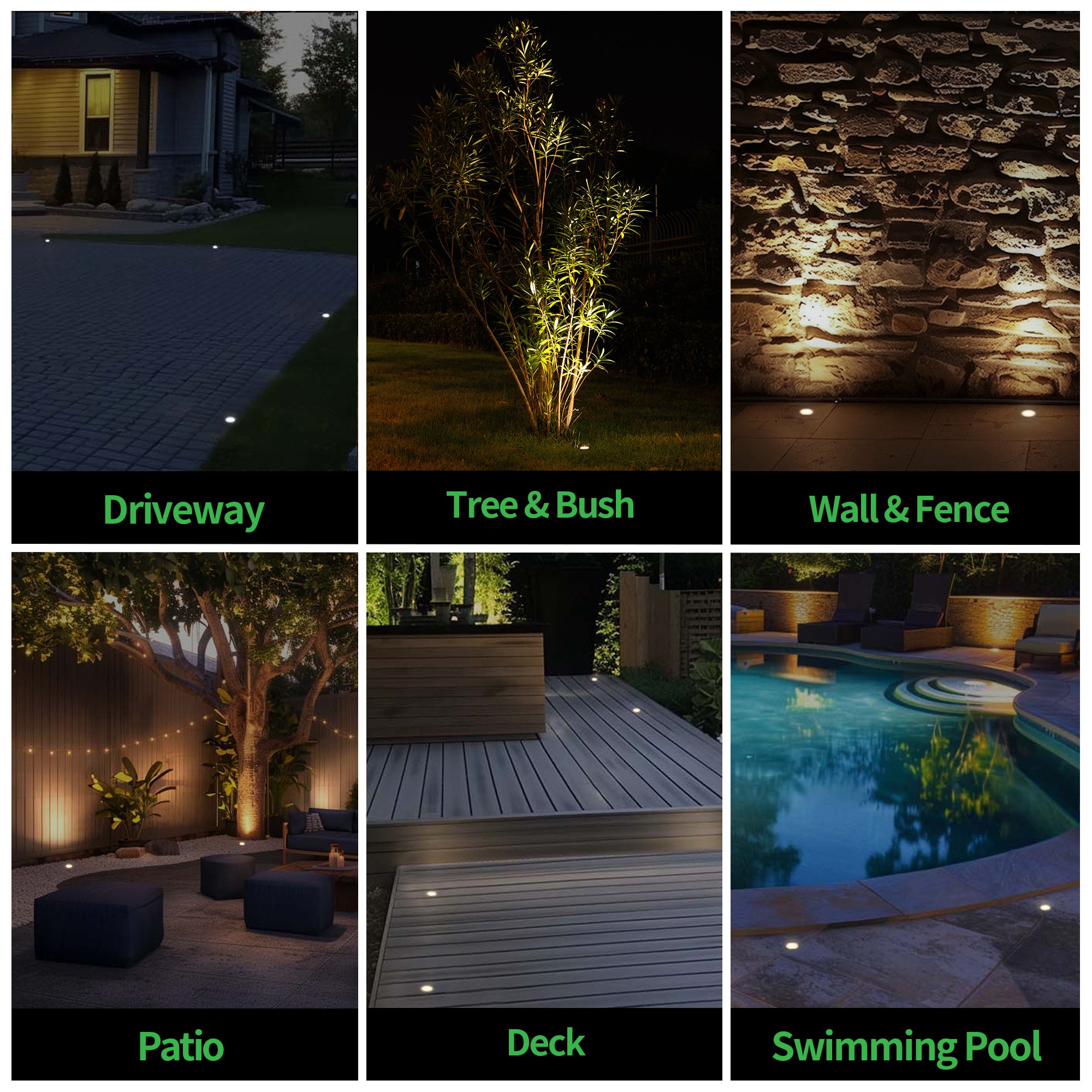

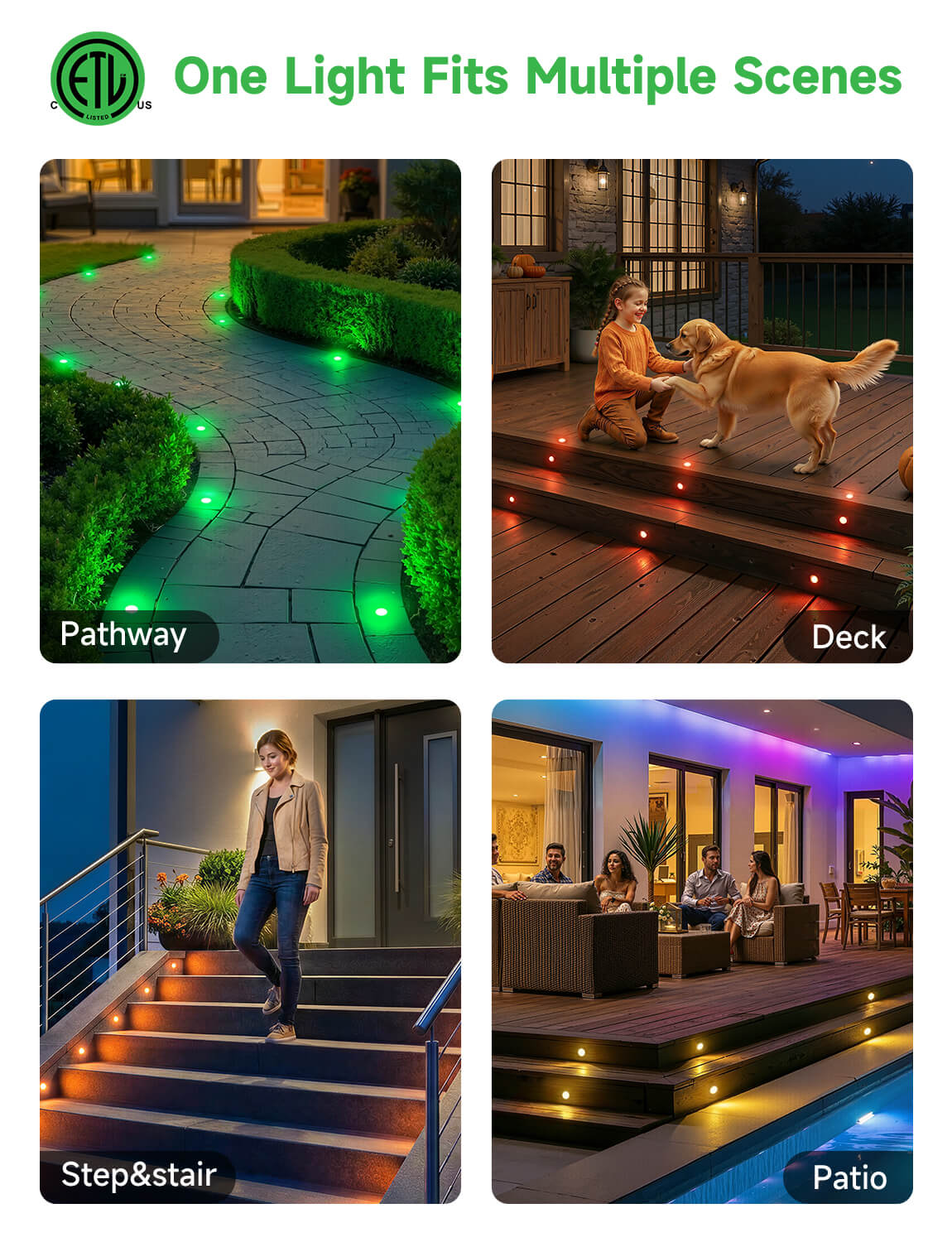

Where are well lights typically installed?

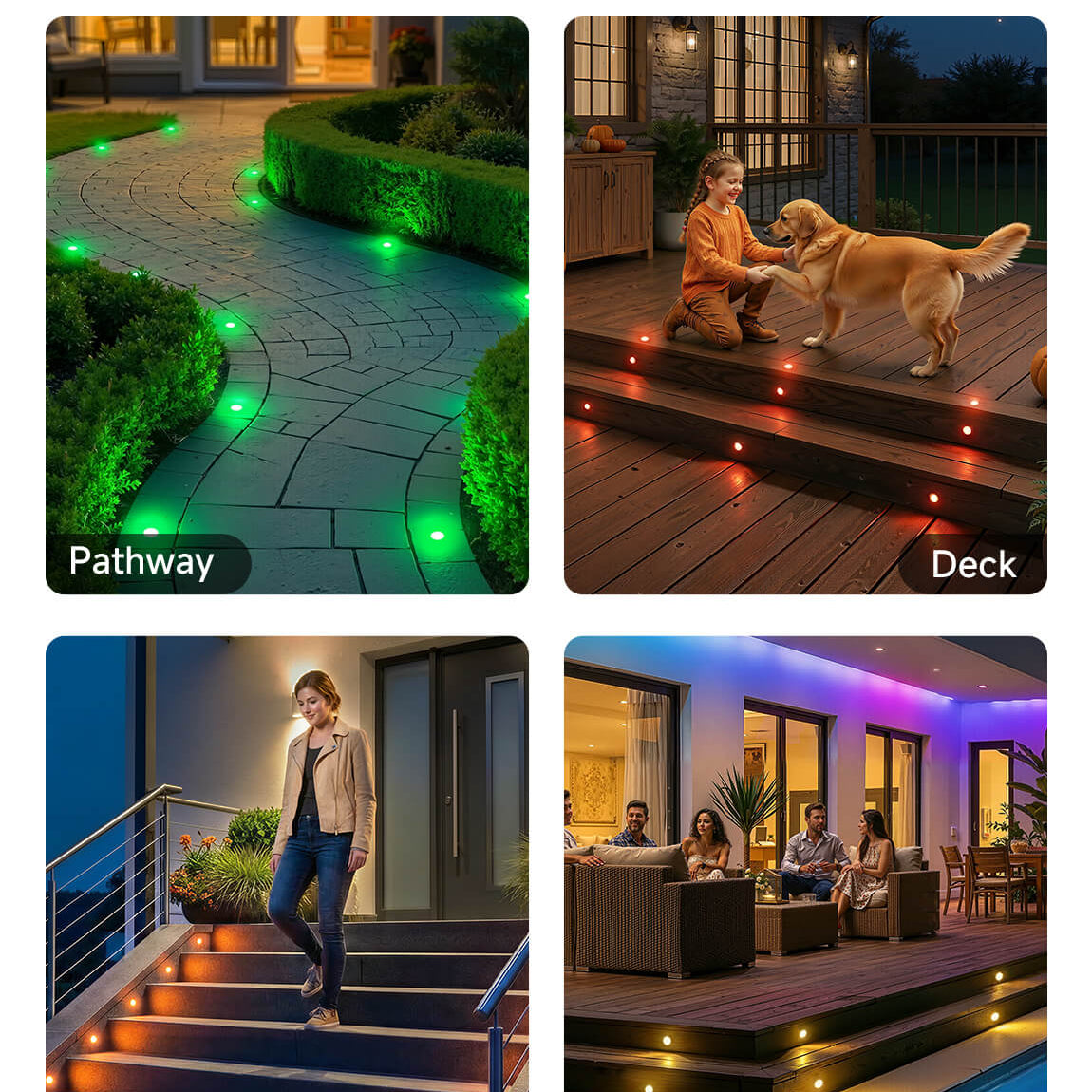

Well lights find their place in various outdoor settings:
- Pathway Lighting: Along walkways and paths, offering guidance and enhancing nighttime aesthetics.
- Accentuating Landscapes: Positioned to highlight trees, shrubs, or architectural features, adding depth and visual interest.
- Architectural Emphasis: Illuminating building exteriors, walls, or unique structures for a captivating facade.
- Garden Enhancements: Within garden beds or flowerbeds, casting a gentle glow to showcase plants and flowers.
- Outdoor Living Spaces: Around patios, decks, or seating areas, creating a welcoming atmosphere for gatherings and relaxation.
- Near Water Features: Placed near ponds, fountains, or waterfalls, enhancing their beauty and creating mesmerizing reflections.
With their versatility, well lights elevate outdoor spaces, providing both practical illumination and aesthetic enhancement.
Do the well lights come with a plug?
No, the lights do not include a plug. They are 12V low voltage and need to be hardwired into a low voltage cable.
How do I know how many well lights I need?
Determining the right number of well lights depends on various factors, including:
Light Fixture Spacing for Pathway Illumination: For bright and consistent pathway lighting, install well lights approximately every 6 to 8 feet along the path. This spacing ensures adequate illumination and minimizes dark spots, enhancing safety and aesthetics.
Consideration of Landscape Lighting Needs: In landscape lighting applications, the number of well lights required is based on the specific features you want to illuminate. Assess the quantity and arrangement of landscape elements—such as trees, shrubs, architectural structures, or focal points—to determine the appropriate number of lights needed for effective illumination.
Desired Lighting Effect: Consider the desired lighting effect you want to achieve. For a softly illuminated path or landscape feature, you may need fewer lights spaced farther apart. Conversely, for a brighter, more intense illumination, additional lights placed closer together may be
By analyzing these aspects, you can determine the optimal number of well lights needed to achieve your desired illumination and aesthetic goals. Experimenting with placements and adjusting as necessary will help fine-tune the lighting design for your outdoor space.

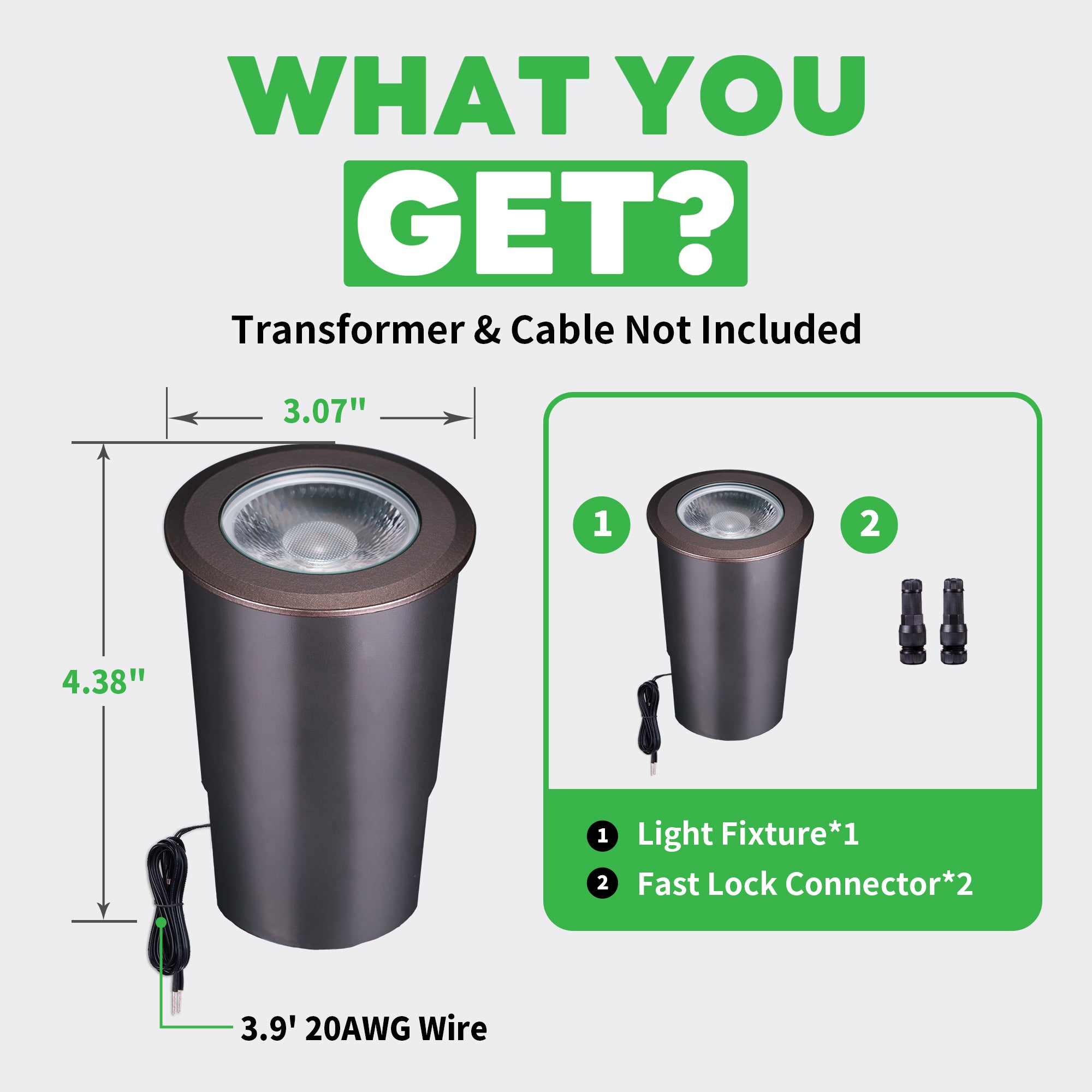

Does it include a transformer?

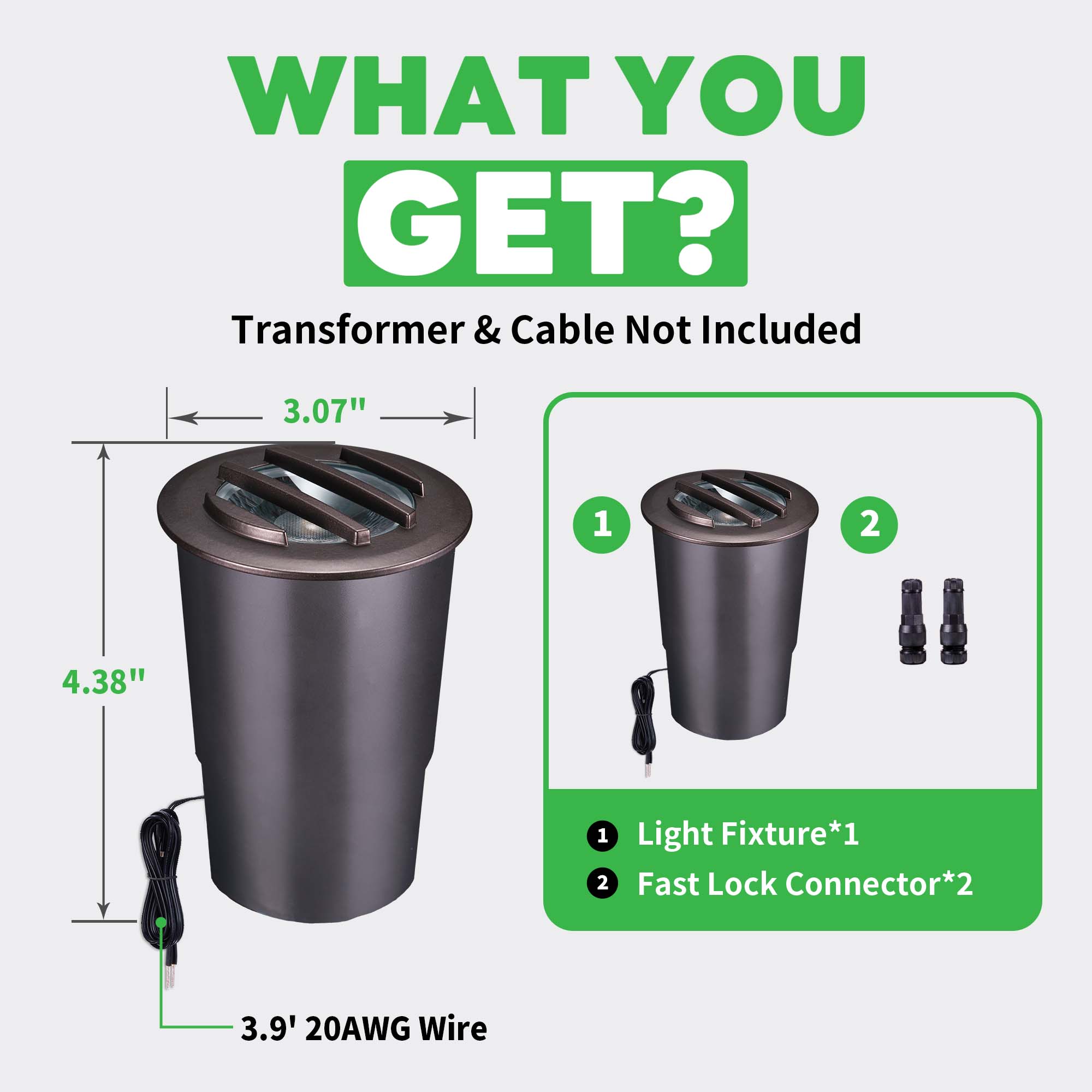

No, you need to purchase cables and a transformer separately. It is compatible with a 9-15V low-voltage transformer.
What size transformer should I choose?
Depends on the power of the transformer and the bulbs, while the electrical energy will inevitably lose 20% of the voltage during transmission.
For example, if the transformer is 150W and each bulb is 5W, then 24 fixtures can be installed (150 x 80% ÷ 5).
What type of light source do the well lights use?
The path lights use integrated LEDs with a lifespan of up to 50,000 hours.
What is the warranty period for the well lights?
The well lights come with a 5-year warranty. Any quality issues within this period warrant a free replacement.
Can I install the well lights myself, or do I need a professional?

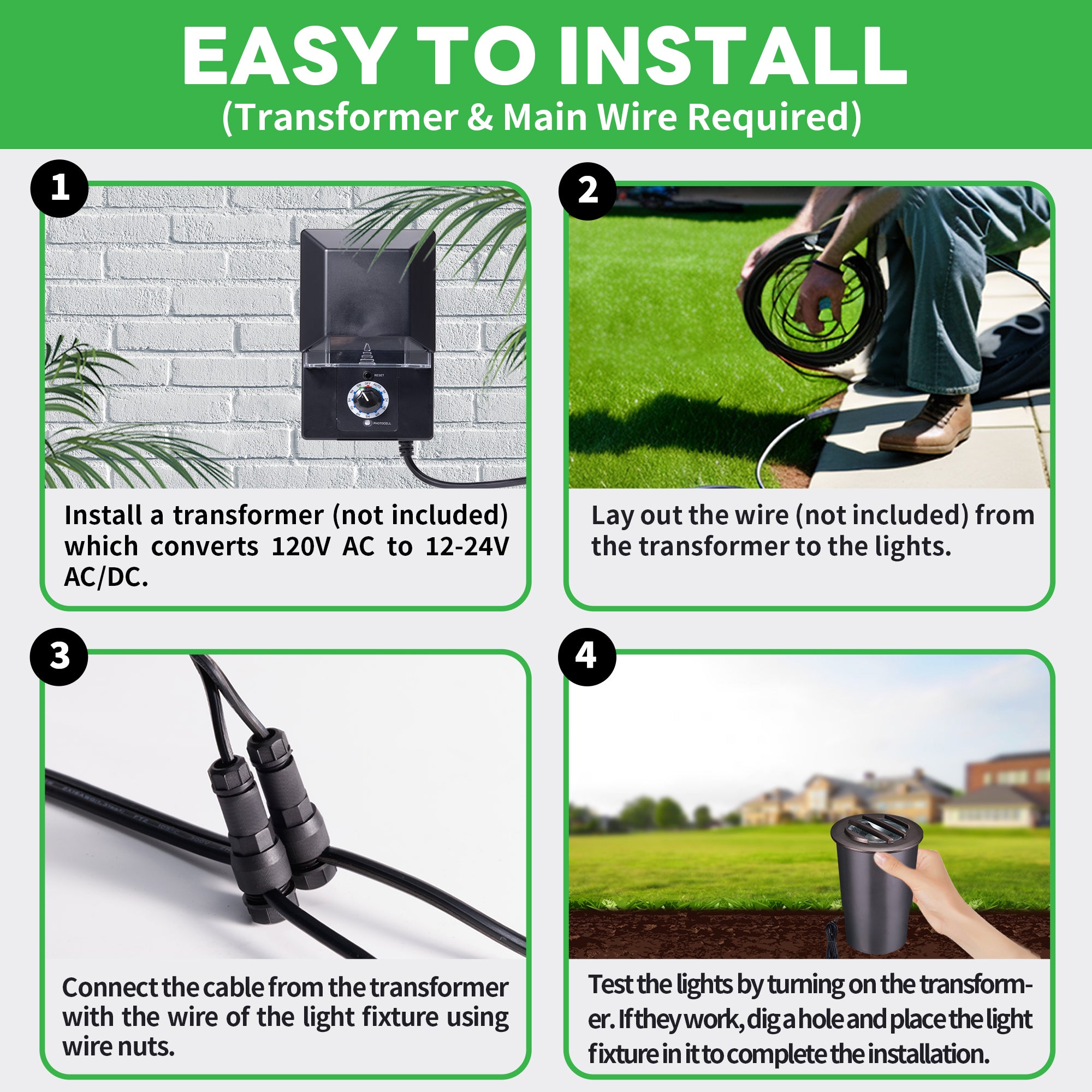

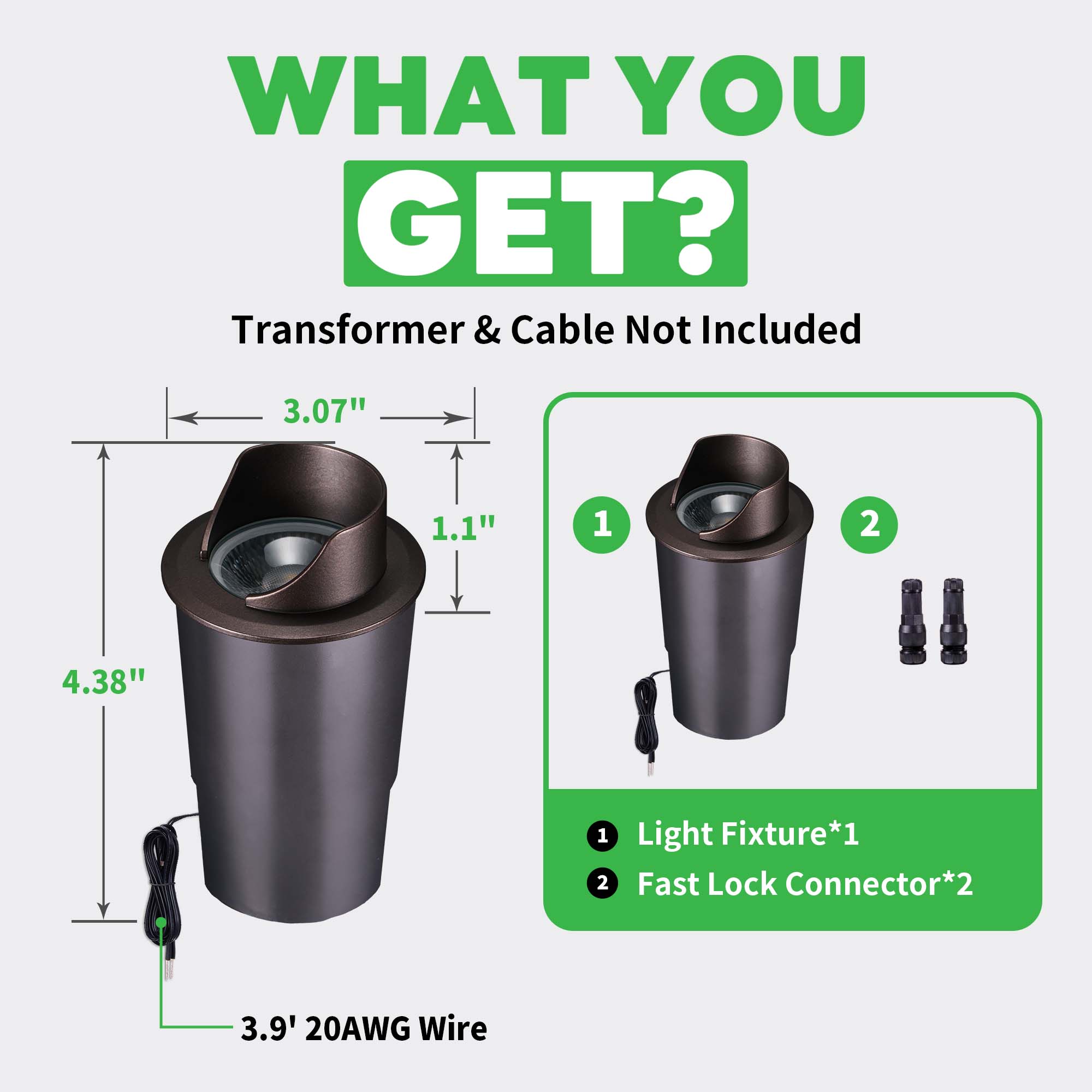

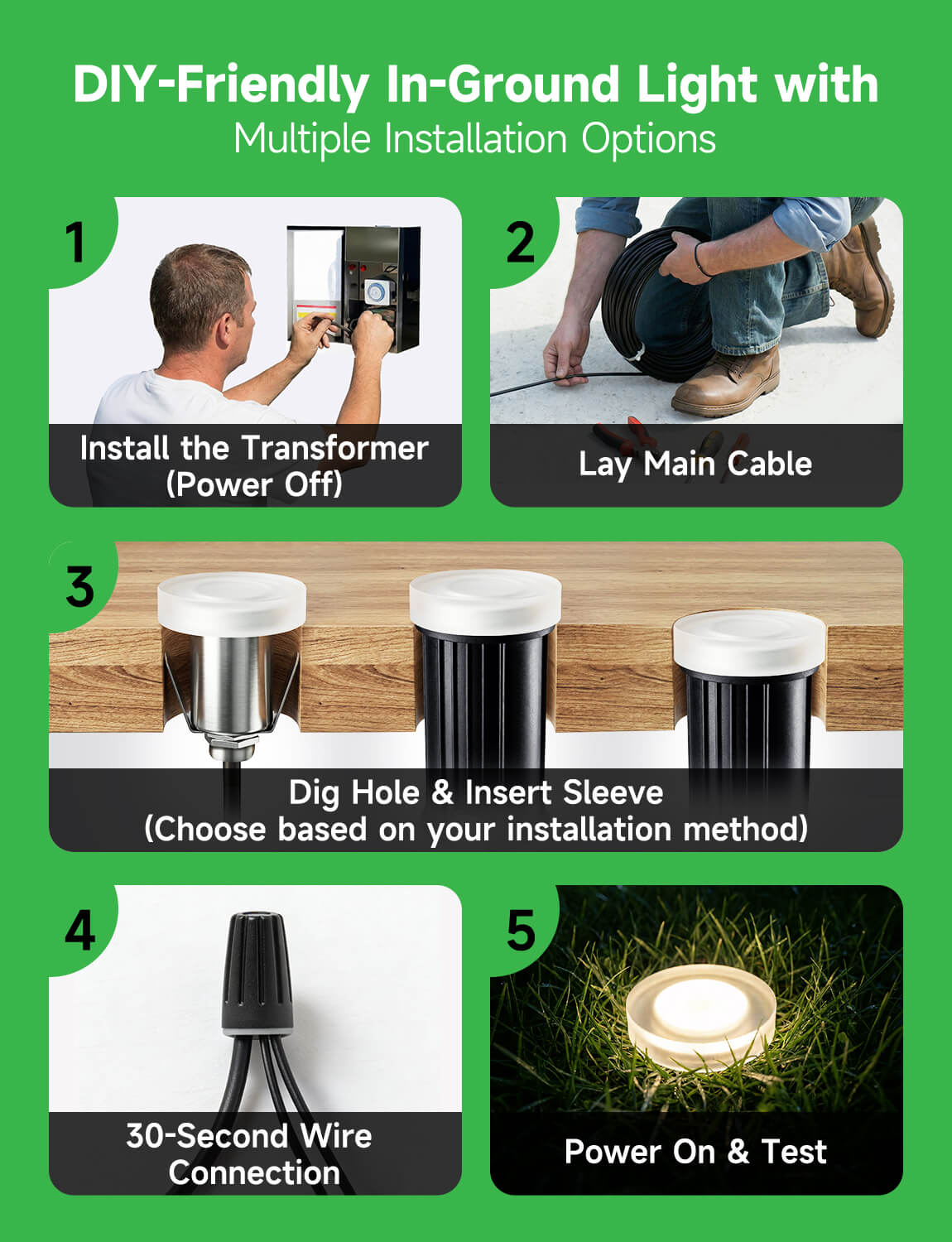

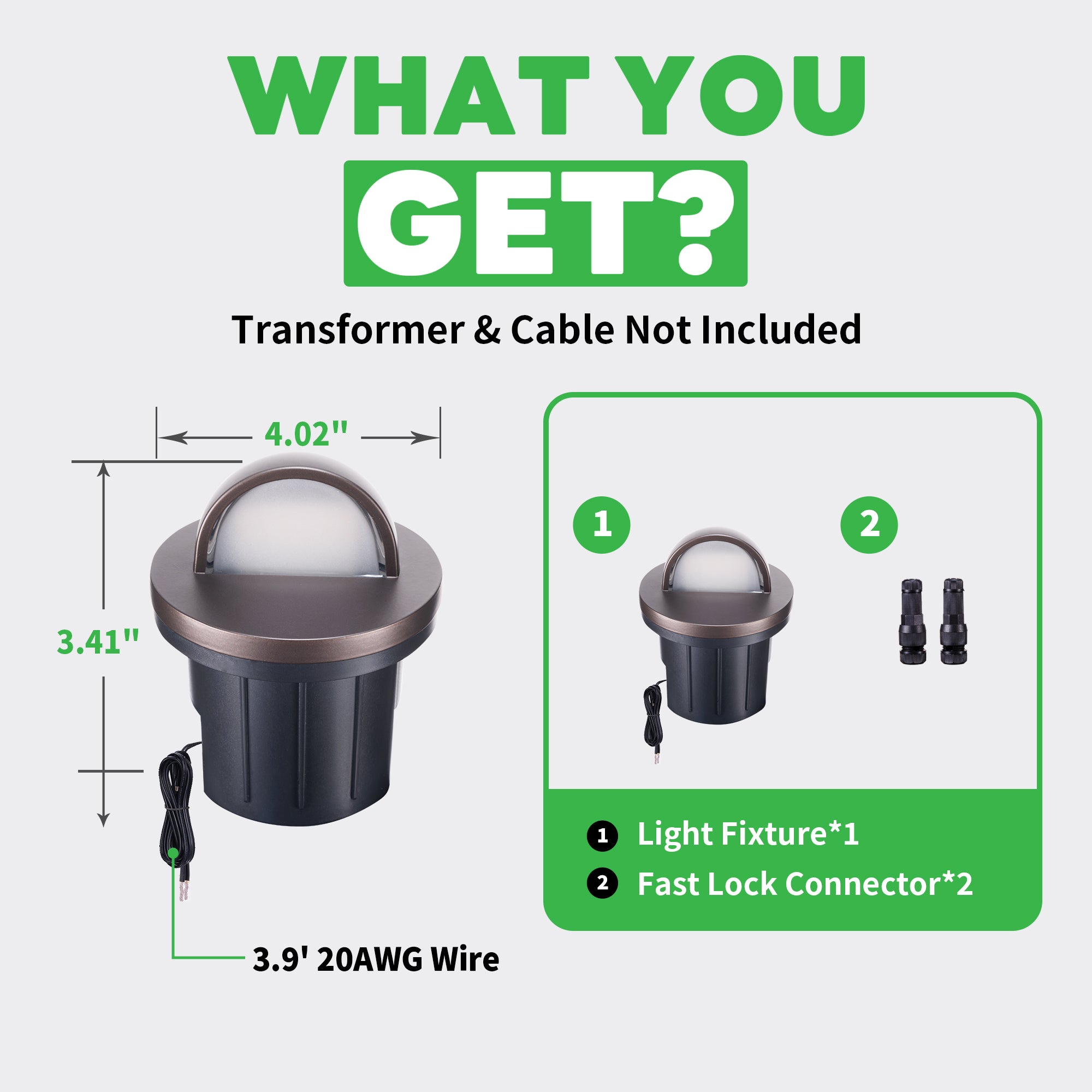

Our well lights are designed for easy installation. The wires come pre-wired, and we include quick connectors, allowing you to conveniently and quickly connect the lights to the main cable.
Elevate Your Nightscape with Varmtalys In-Ground Well Lights: Flush, Focused, Low-Glare
About In-Ground Well Lights

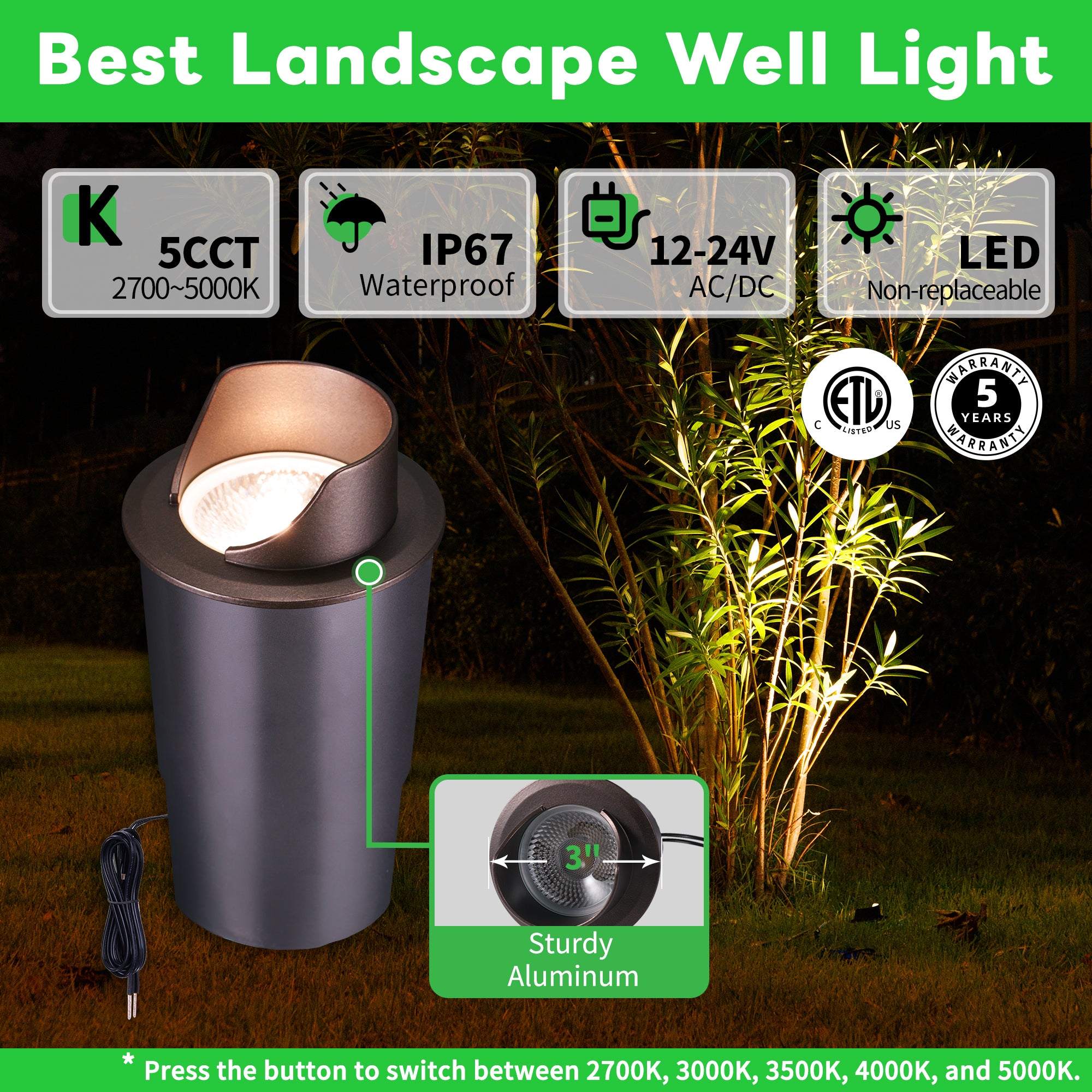

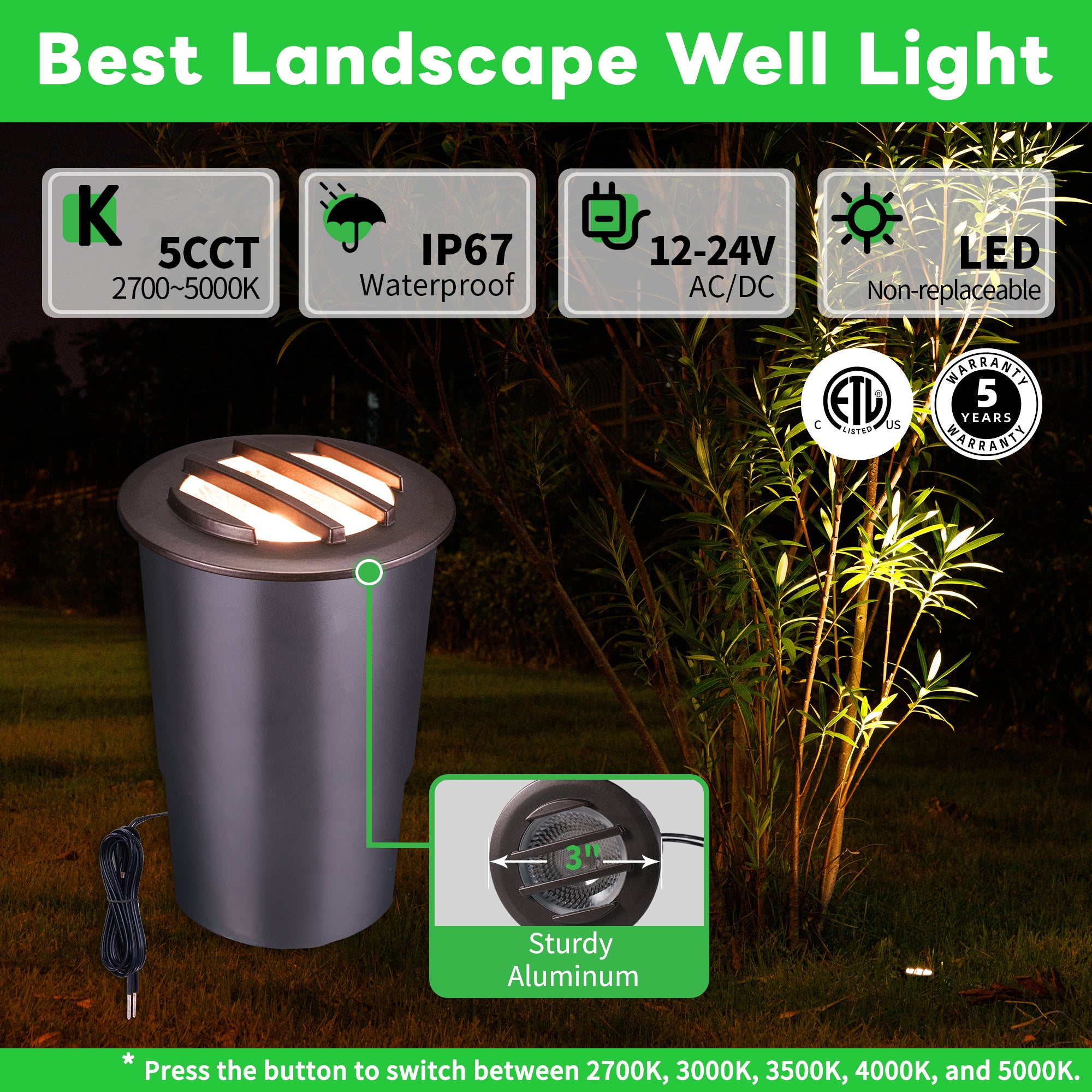

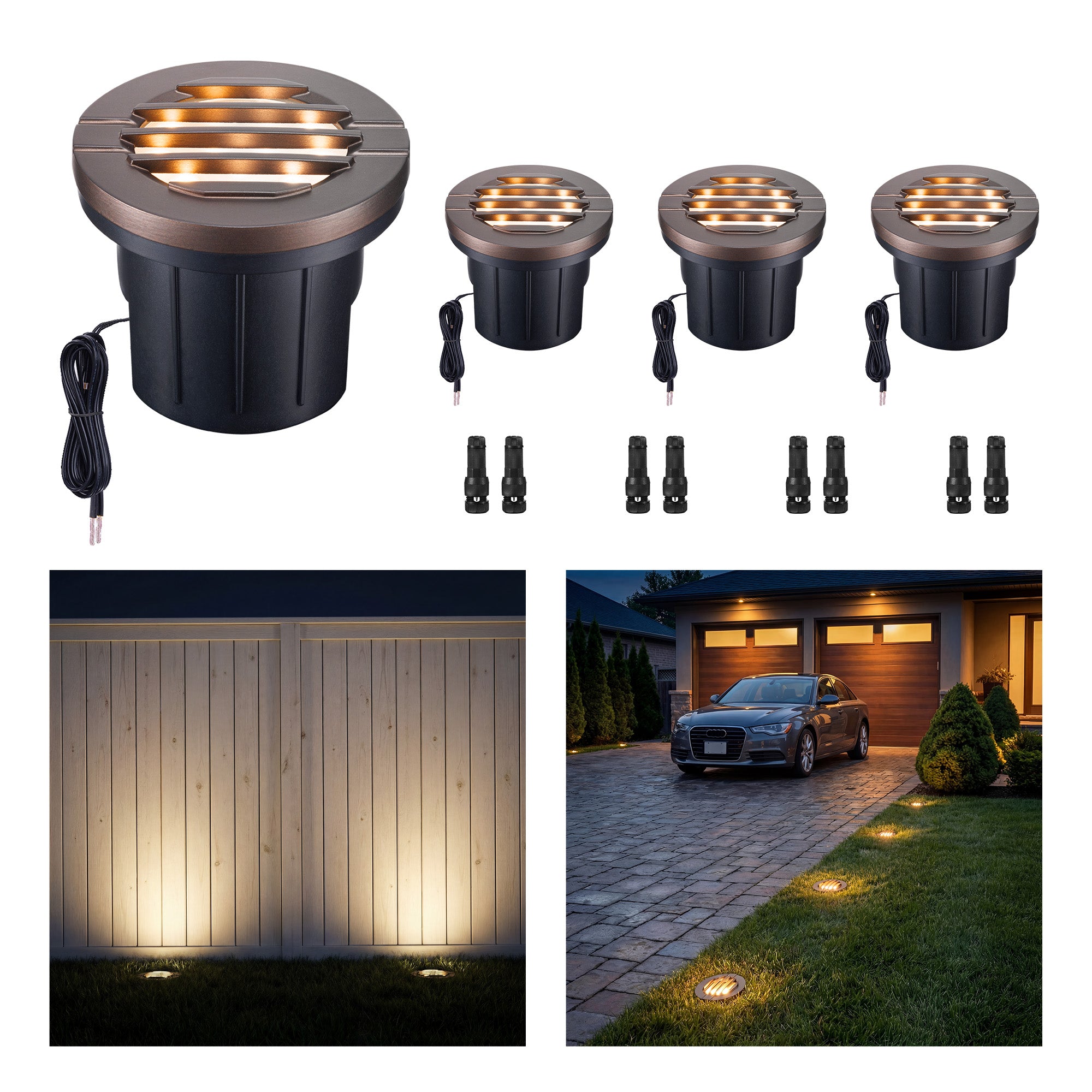

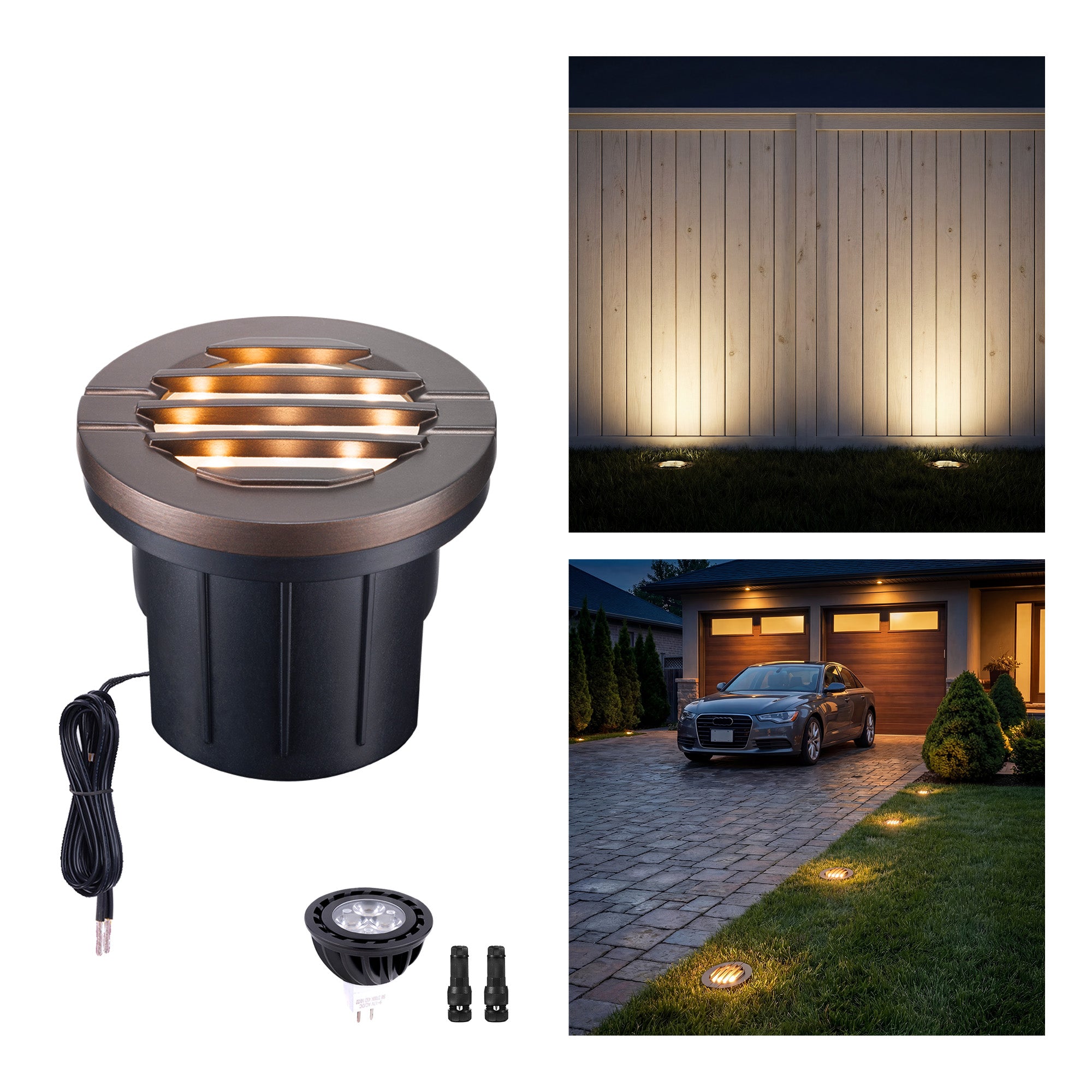

Varmtalys aluminum in-ground well lights sit nearly flush with the surface to deliver discreet, dramatic uplighting for trees, walls, and architectural features. Built for 12V low-voltage systems, they’re safe, DIY-friendly, and engineered for glare control with options like turret/grated/shield tops and internal shielding. With weather-sealed housings (IP67) and tempered lenses, our well lights stand up to rain, sprinklers, and foot traffic while keeping attention on the scene—not the fixture. Whether you’re outlining a driveway, washing a façade from the ground, or adding hidden highlights near pathways and planting beds, Varmtalys offers practical beams, selectable color temperatures on select models, and installation accessories that make clean, reliable in-grade installs easier.
Well Light Categories
Uplight (Narrow to Medium Beam): Trees, Columns & Facades
What they do: Create crisp vertical accents and controlled wall washes from a near-invisible source.
Features & Parameters
- Low voltage: 12–24V AC/DC (transformer required)
- Power: typically 3–9W
- Beam options: 15°–60° (model-dependent)

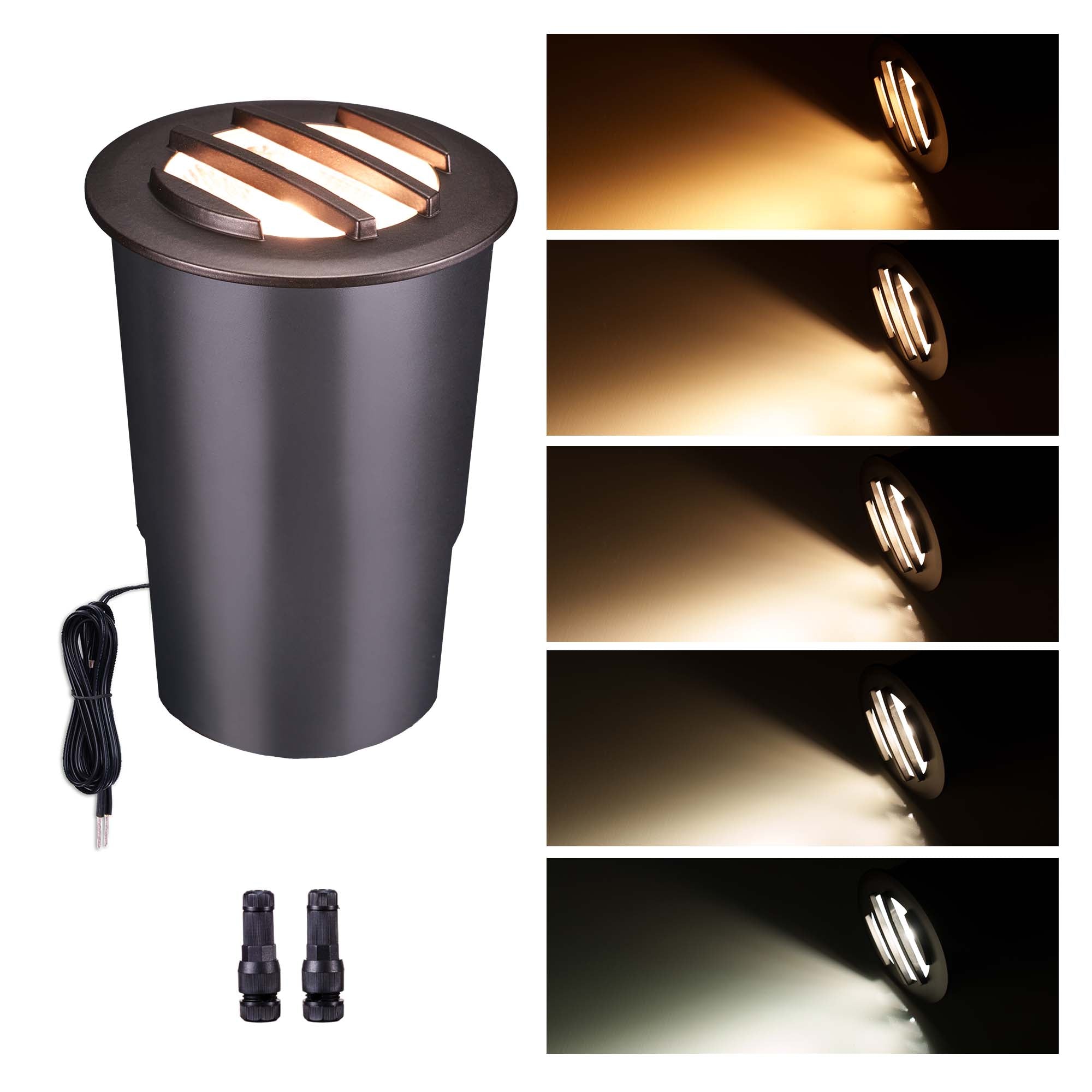

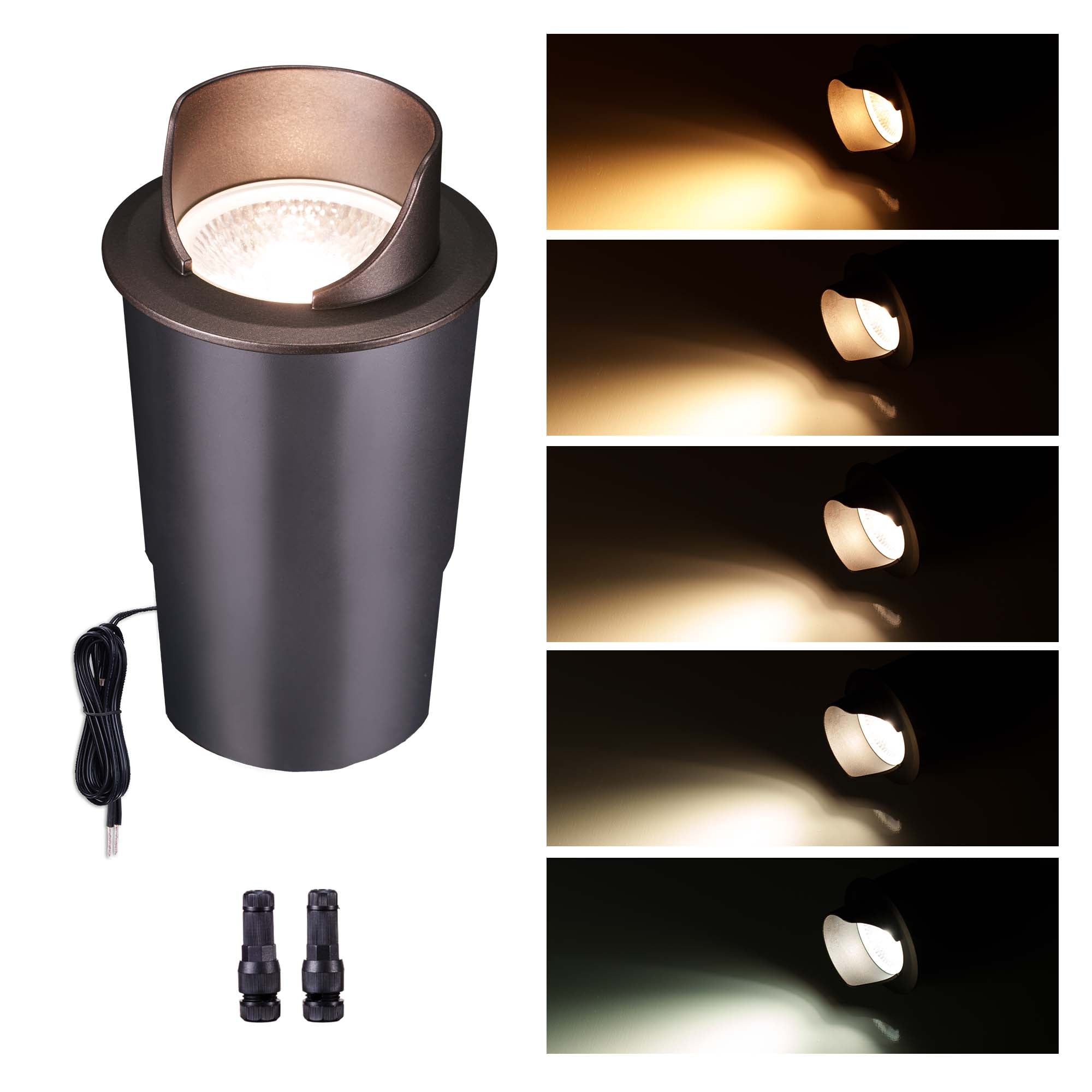

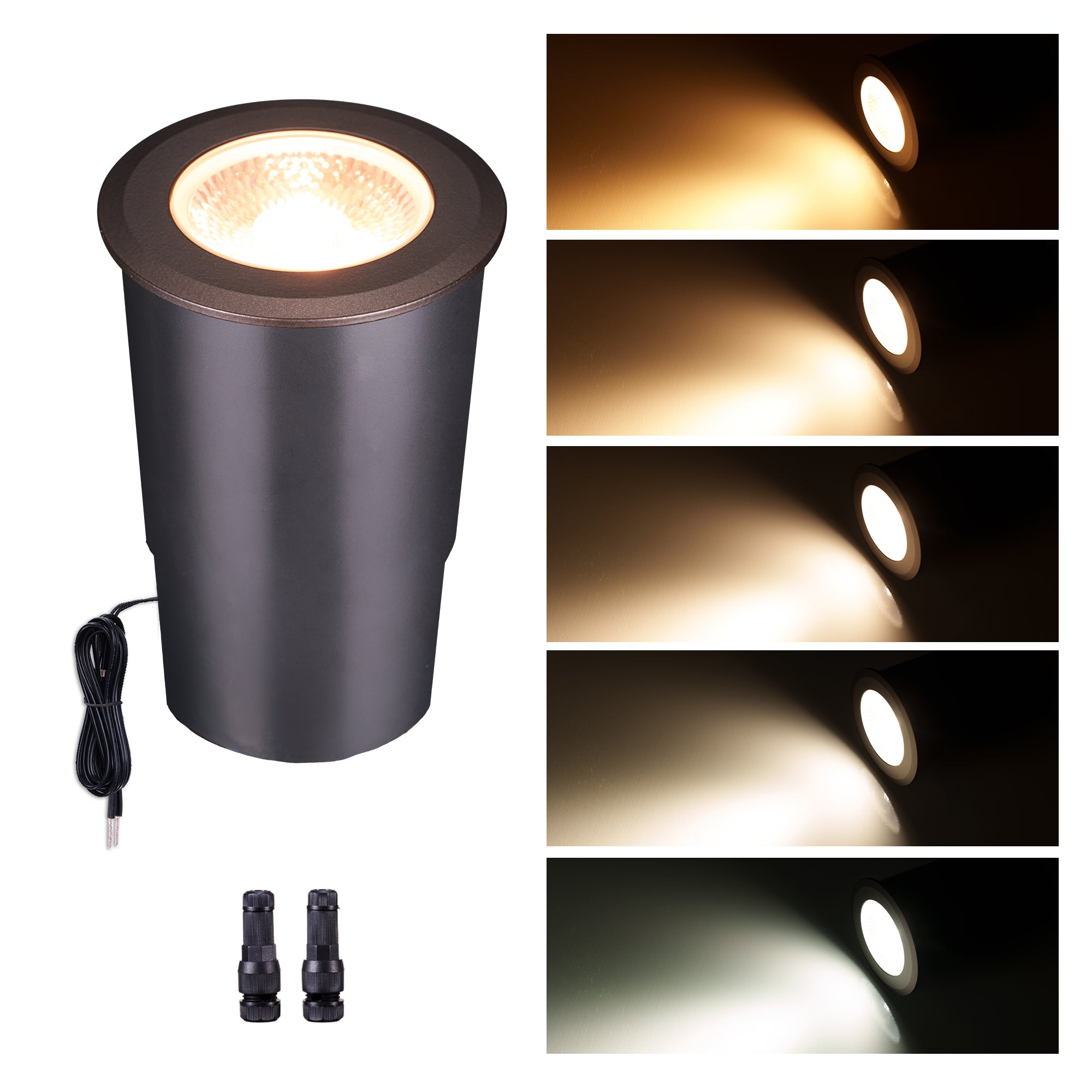

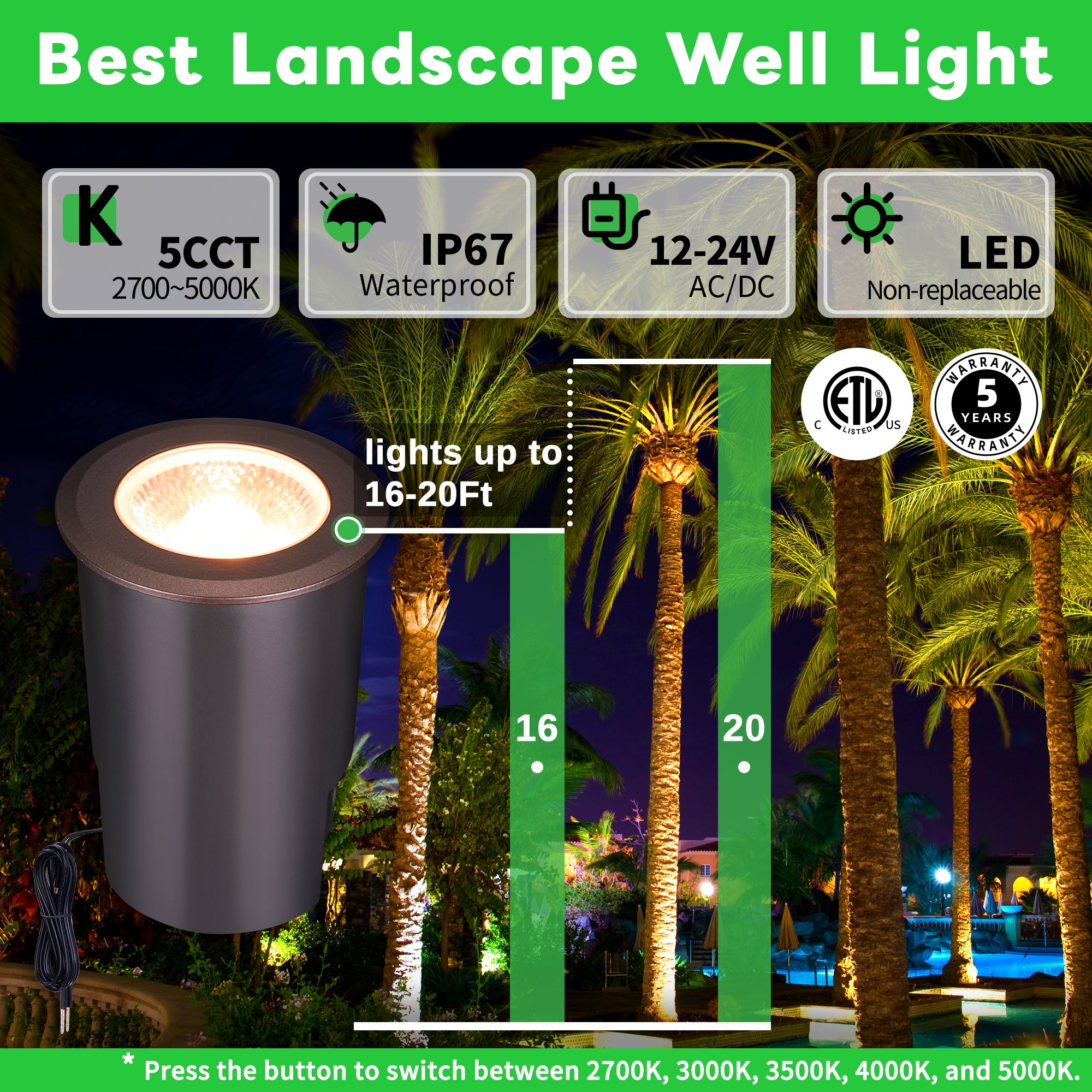

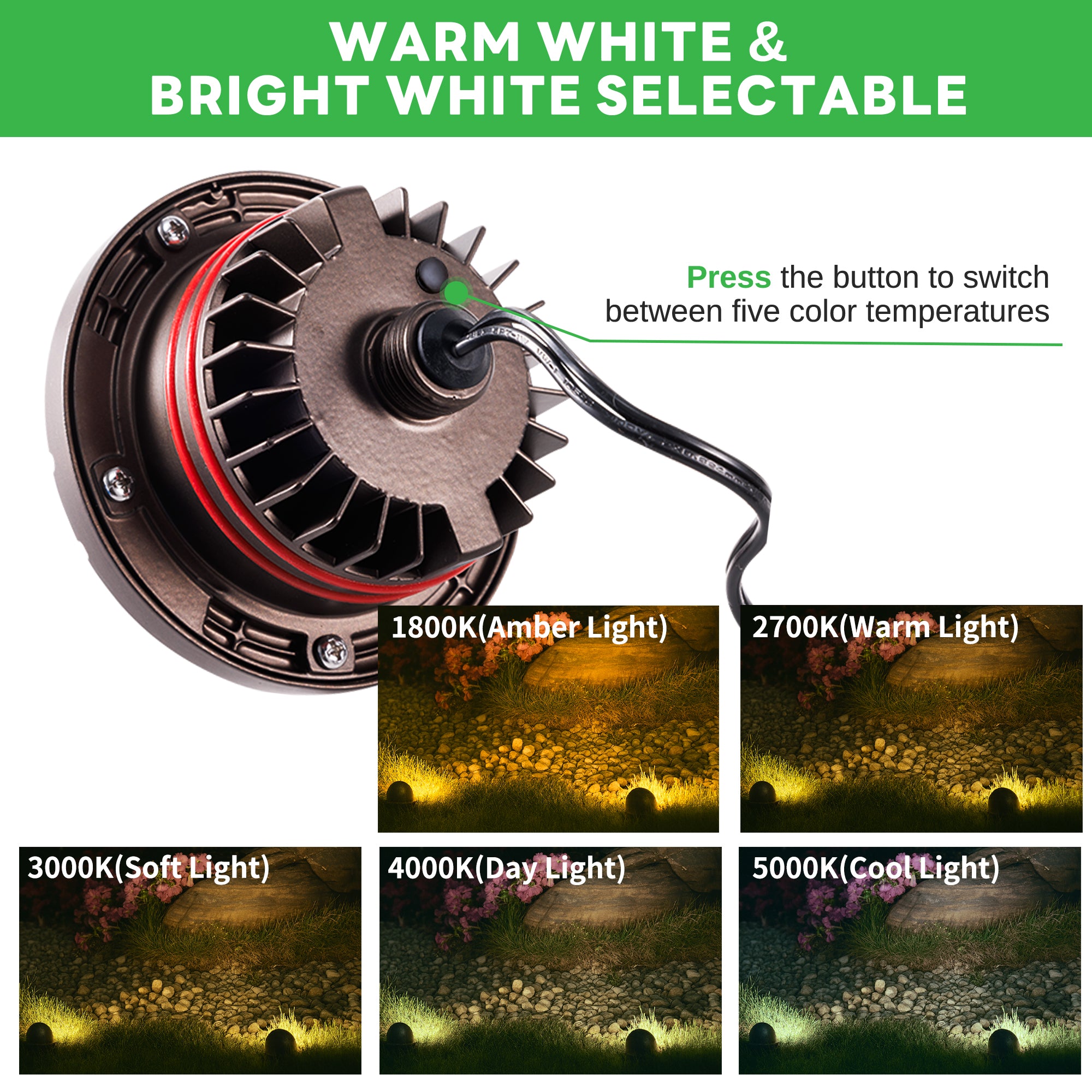

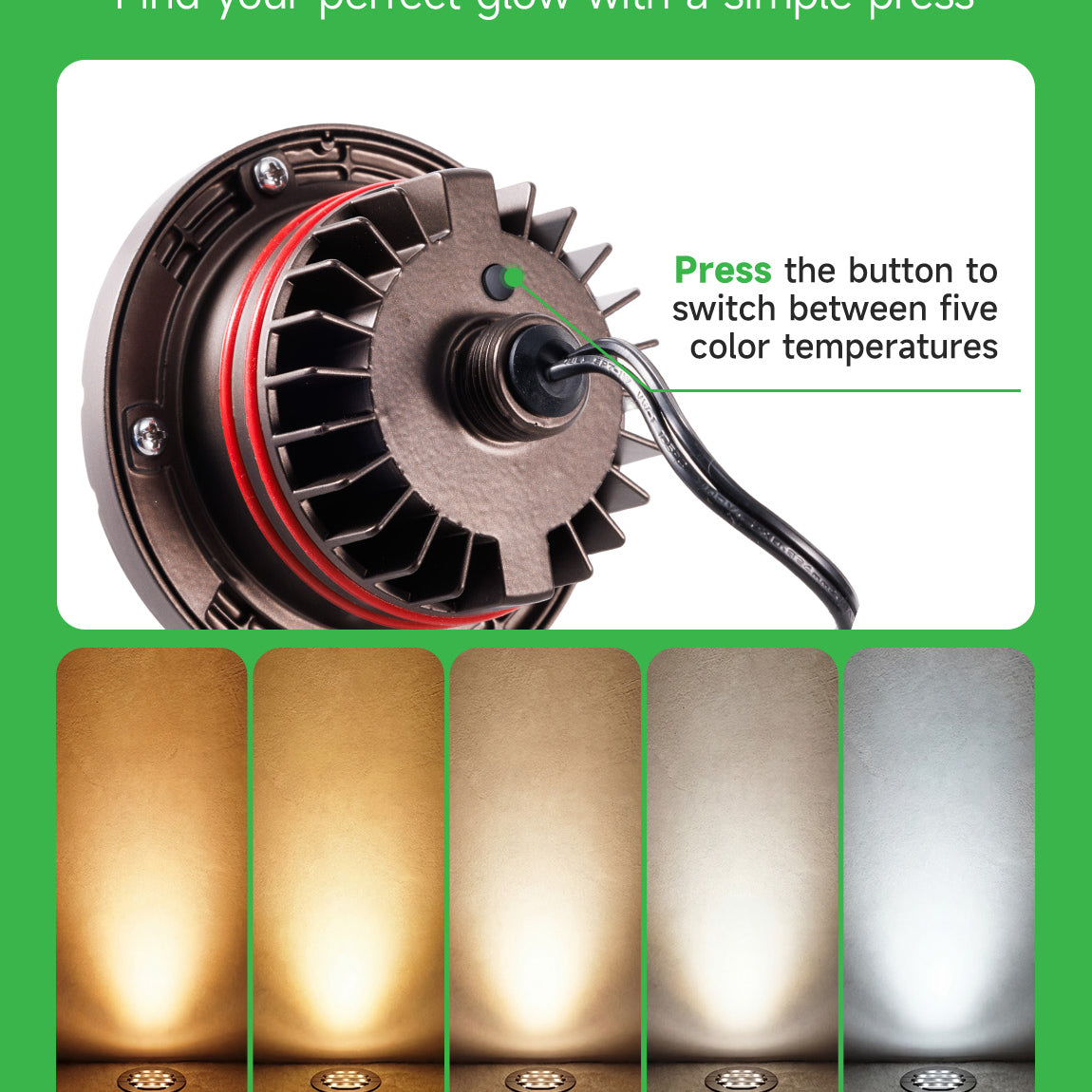

- CCT: 2700–3000K warm; select models offer multi-CCT (up to 5000K)
- Output: approx. 150–700 lm

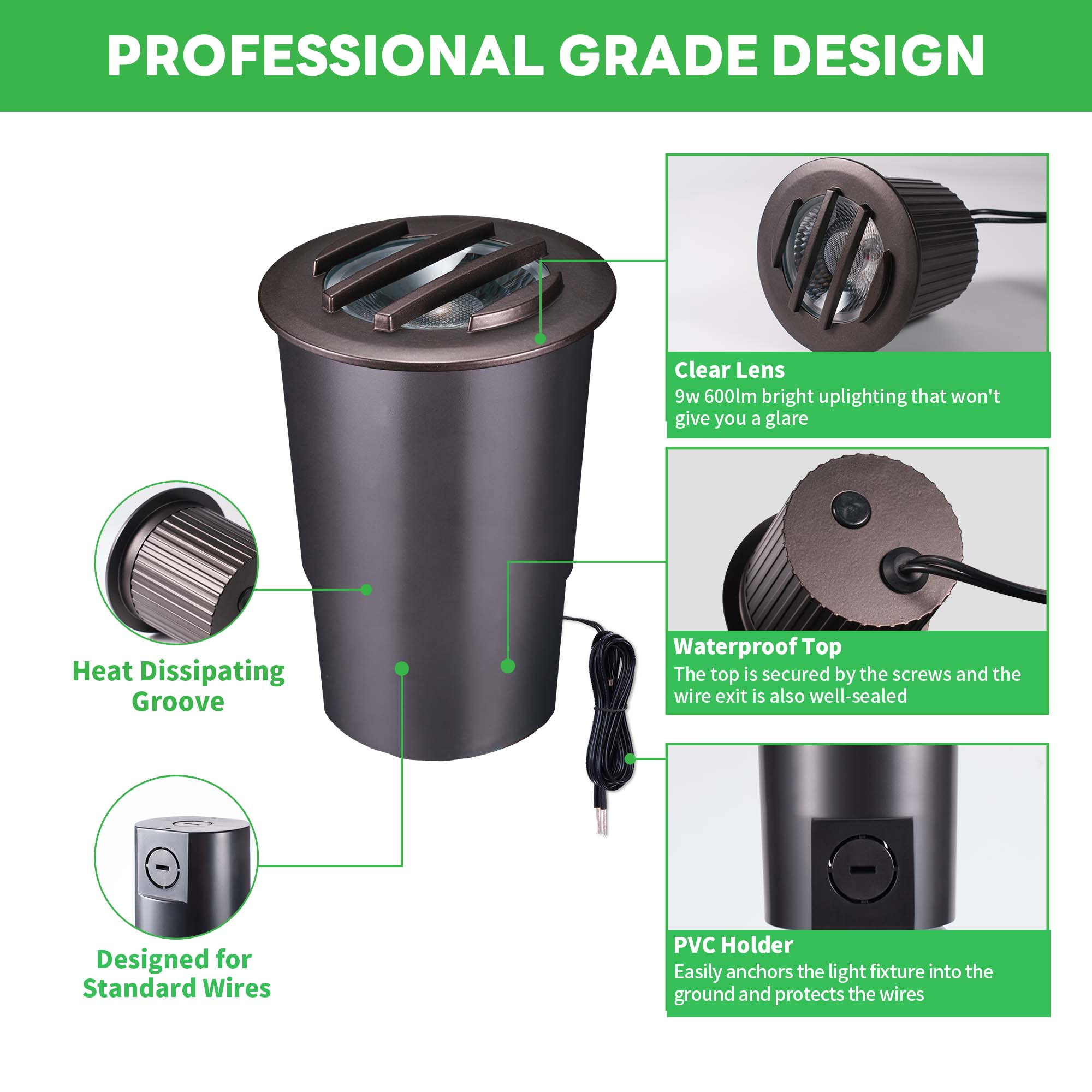

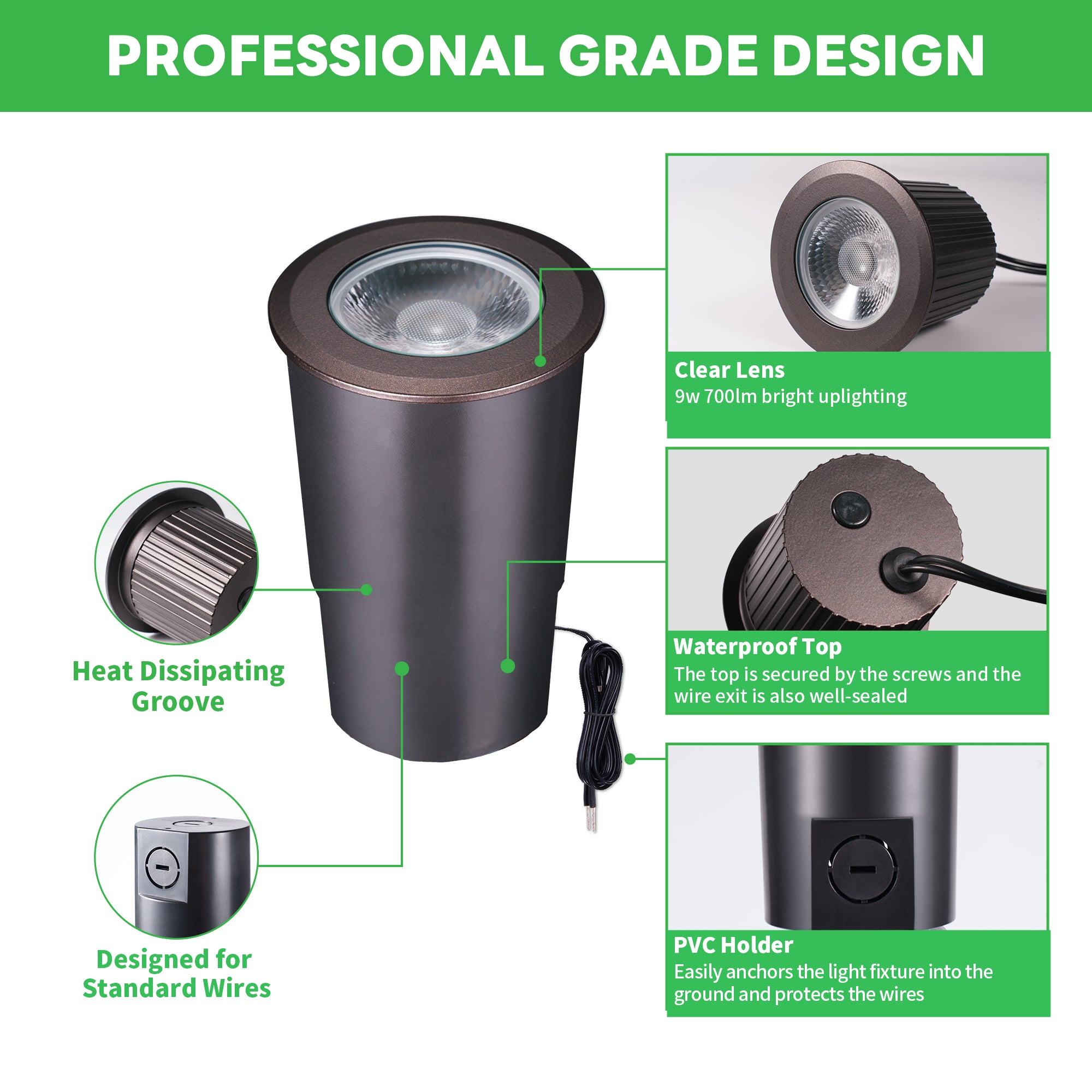

- Build: die-cast aluminum body, tempered glass lens; optional anti-glare grate/turret top

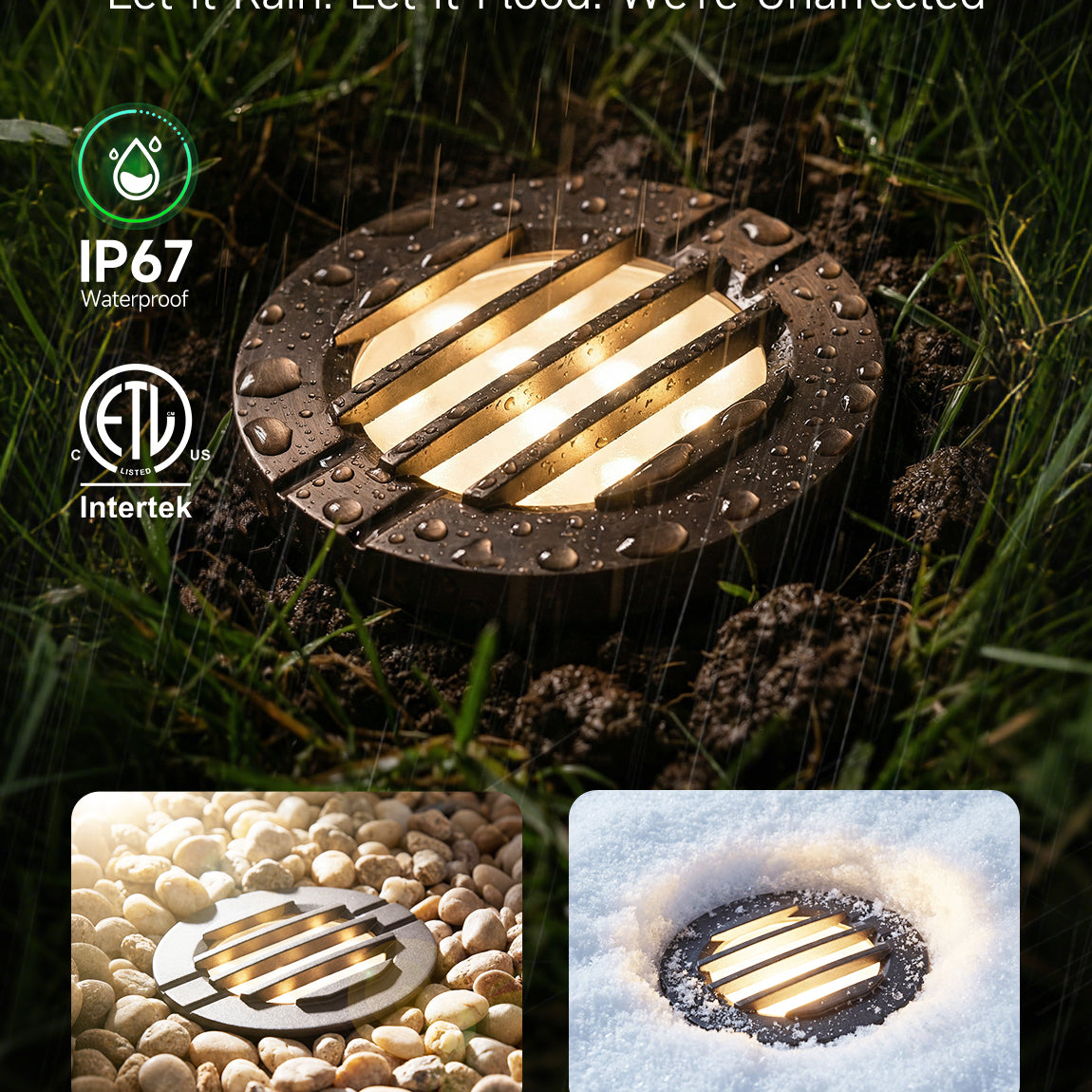

- Weather: IP67 in-grade sealing

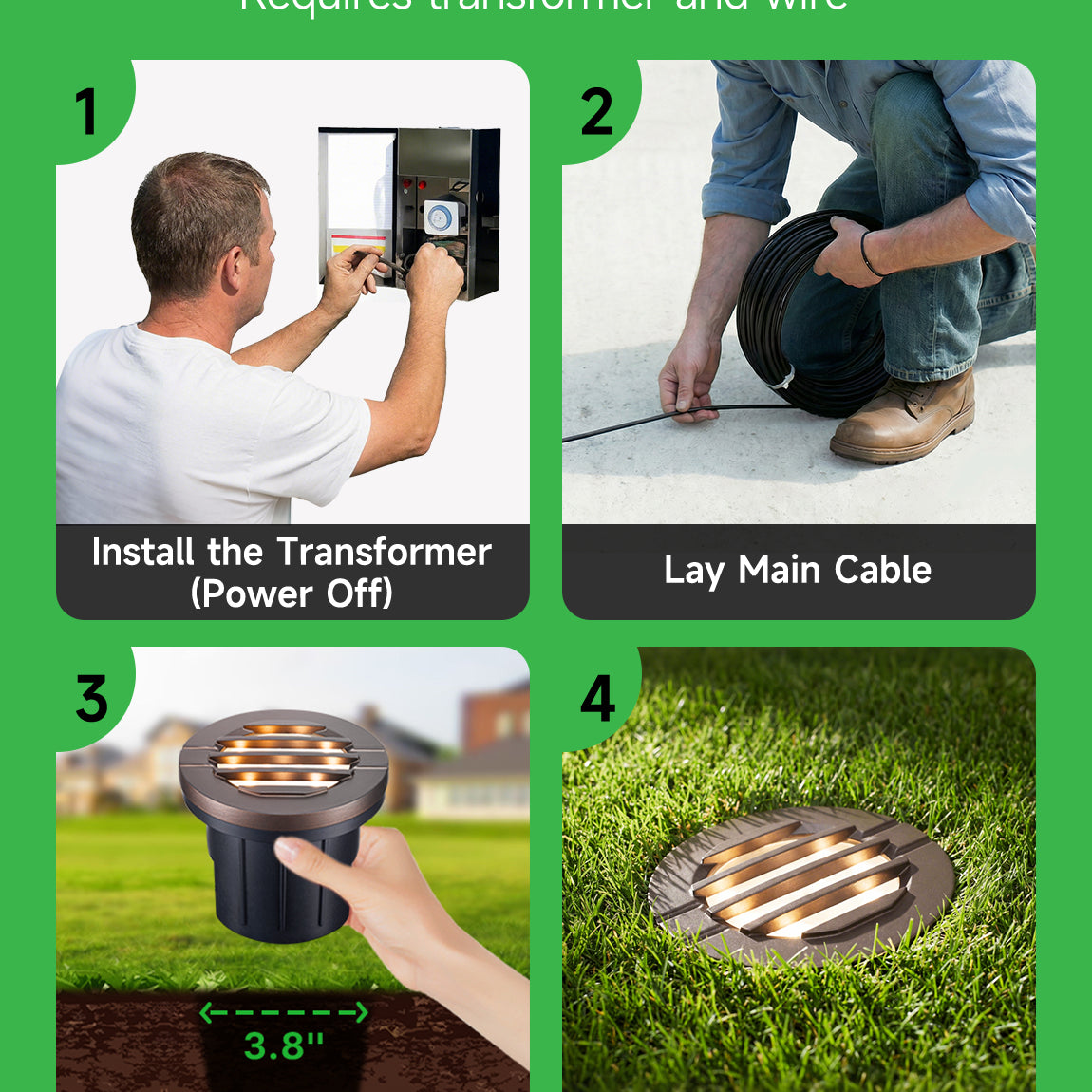

- Install: recessed/sleeve mount with drainage gravel bed
- Typical Applications: Specimen trees / Entry columns / Stone/brick facades / Feature walls
-
Side-Emitting / Low-Profile Edge Markers: Soft Guidance Without Glare
What they do: Push light laterally across pavers or turf to outline edges and transitions with minimal spill.
Features & Parameters
- Low voltage: 12–24V AC/DC
- Power: 3–6W
- Distribution: lateral/one-sided or 180° window (model-dependent)
- CCT: 1800–5000K natural tones (select SKUs multi-CCT)
- Output: approx. 120–420 lm
- Build: aluminum housing, low-glare window
- Weather: IP67
- Install: near-flush set; ideal along pavers/curbs
- Typical Applications: Drive/path edging / Steps/landings perimeters / Patio borders / Wayfinding
-

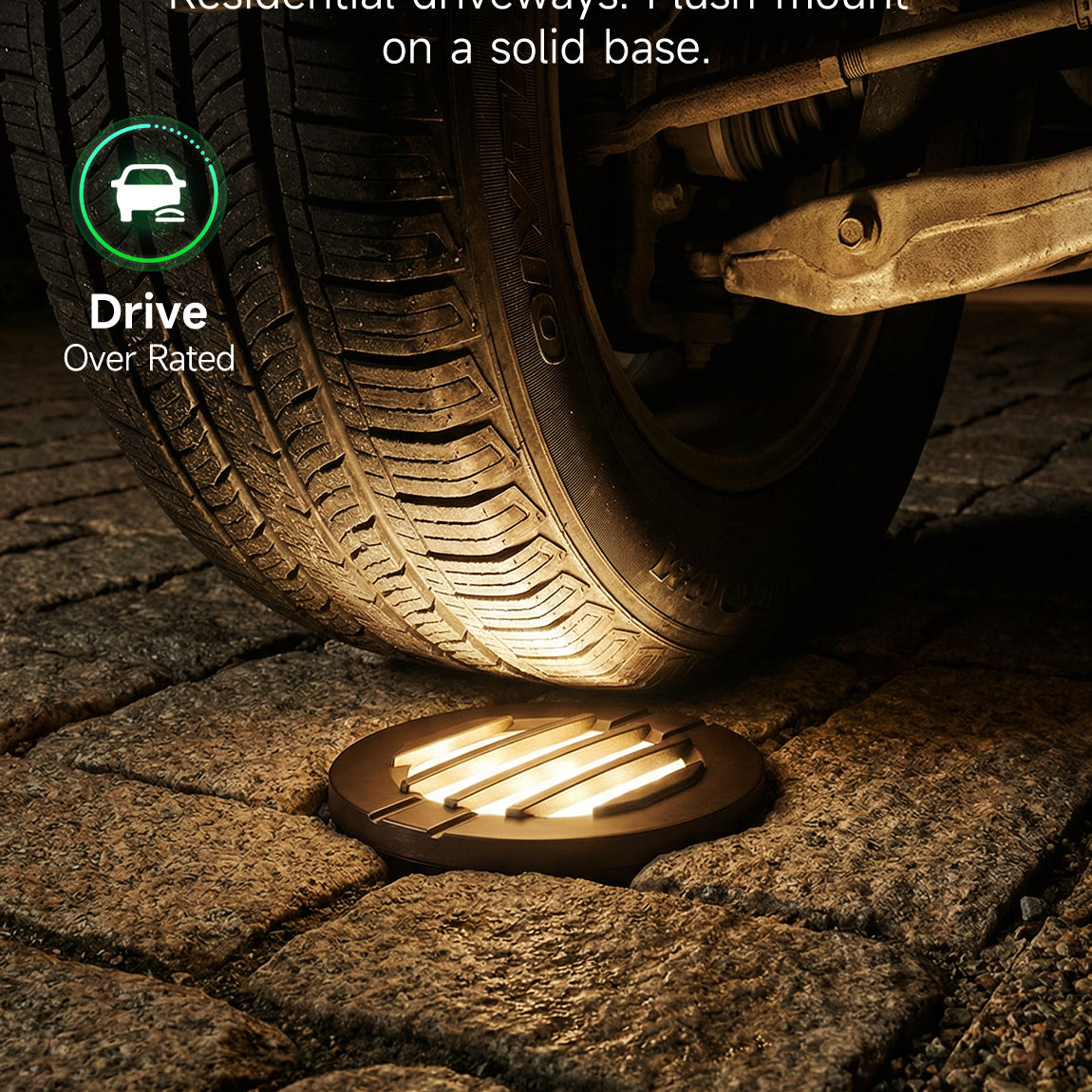

Driveway / Paver-Rated In-Grade (Selected Models): Built for Hard Use
What they do: Higher static load ratings and thicker lenses for vehicular or heavy foot traffic zones.
Features & Parameters
- Low voltage: 12–24V AC/DC
- Power: 3–6W
- CCT: warm to neutral whites; select SKUs multi-CCT
- Output: approx. 150–400 lm
- Build: reinforced tempered glass, robust in-grade body
- Weather: IP67
- Install: follow core-drill + sleeve + drainage best practice; confirm drive-over rating on the product page
- Typical Applications: Driveways / Paver courts / Garage aprons / High-traffic patios
Why Choose Varmtalys Well Lights?
- Discreet, flush appearances keep sightlines clean and reduce trip hazards
- Low-glare tops/optics focus light where you want it—without hot spots

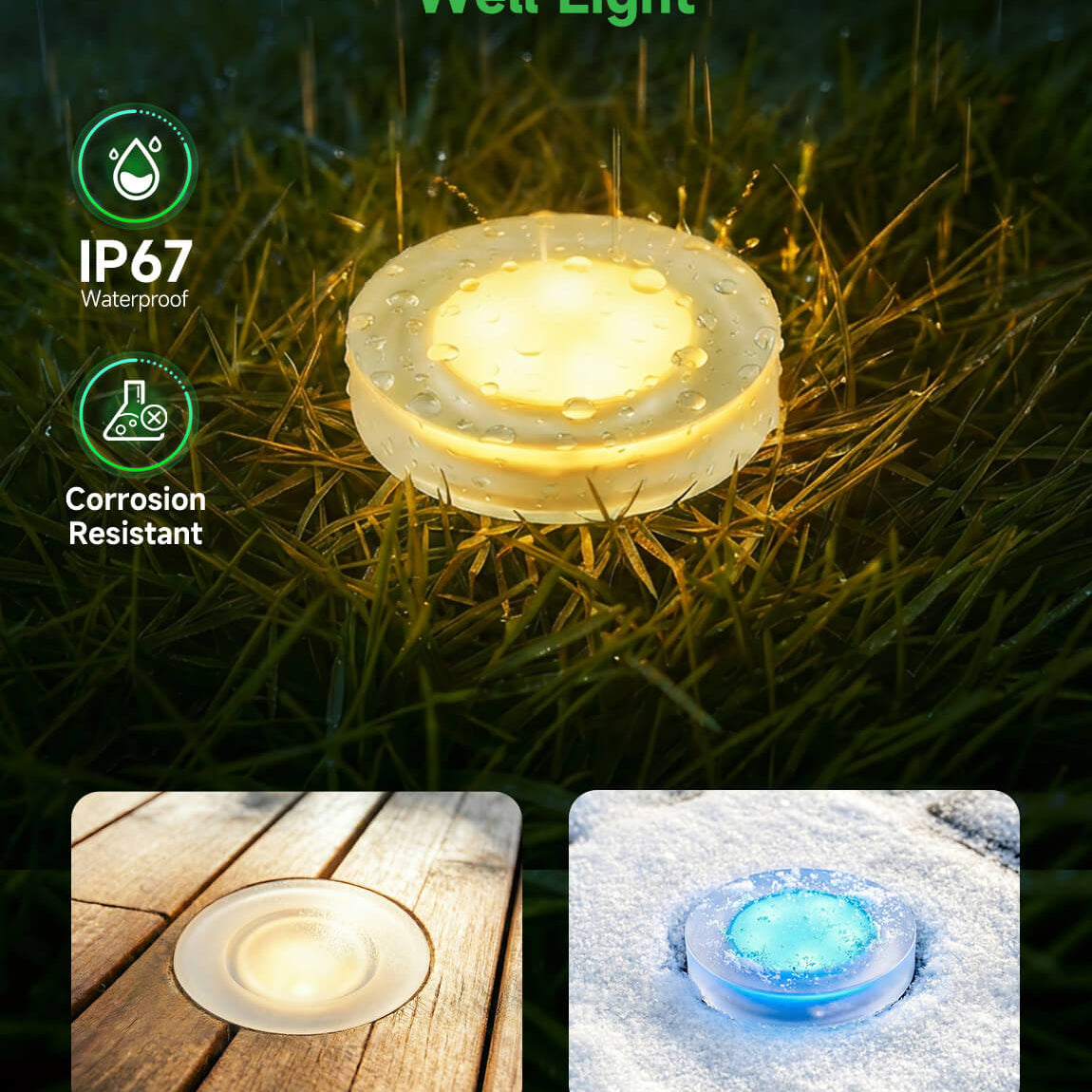

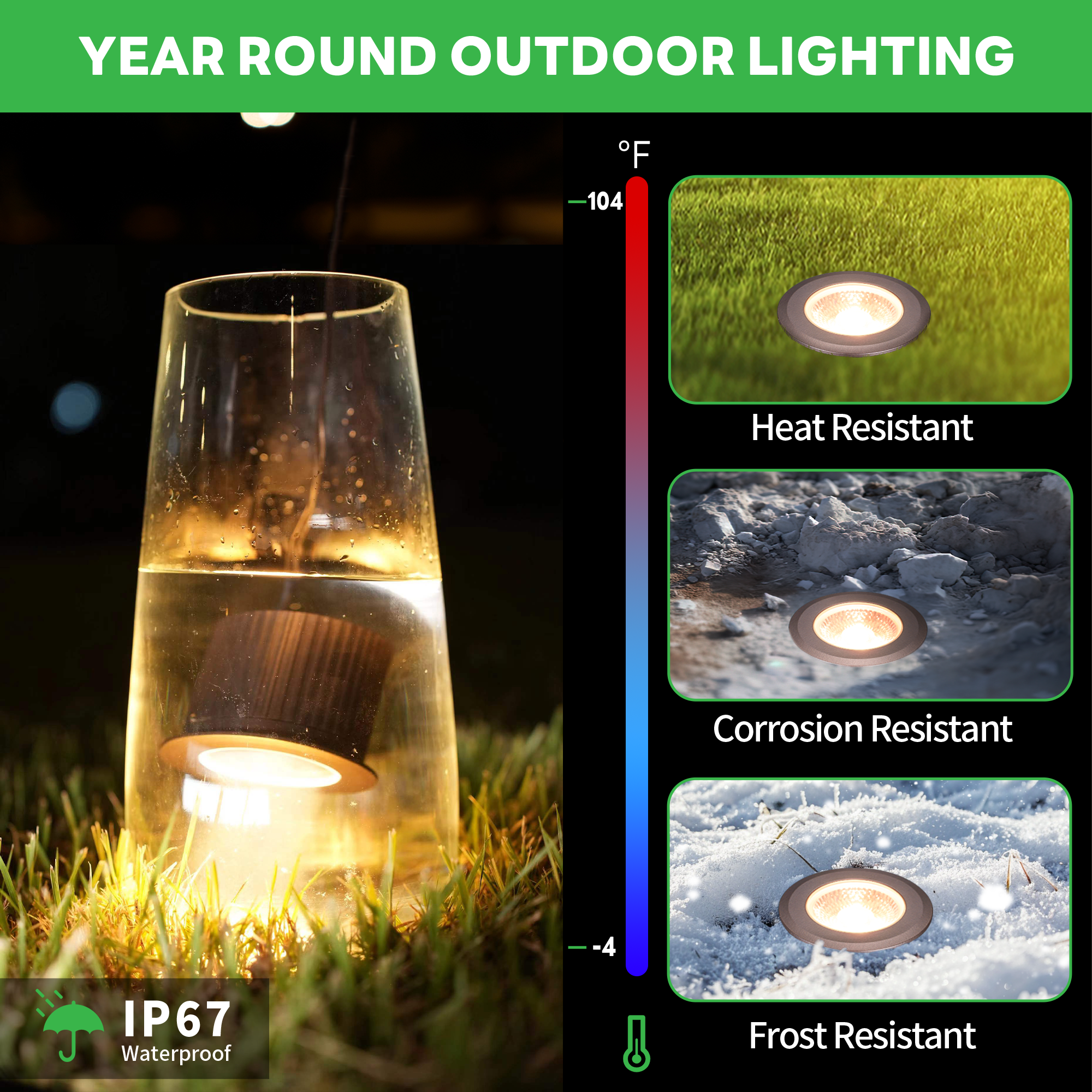

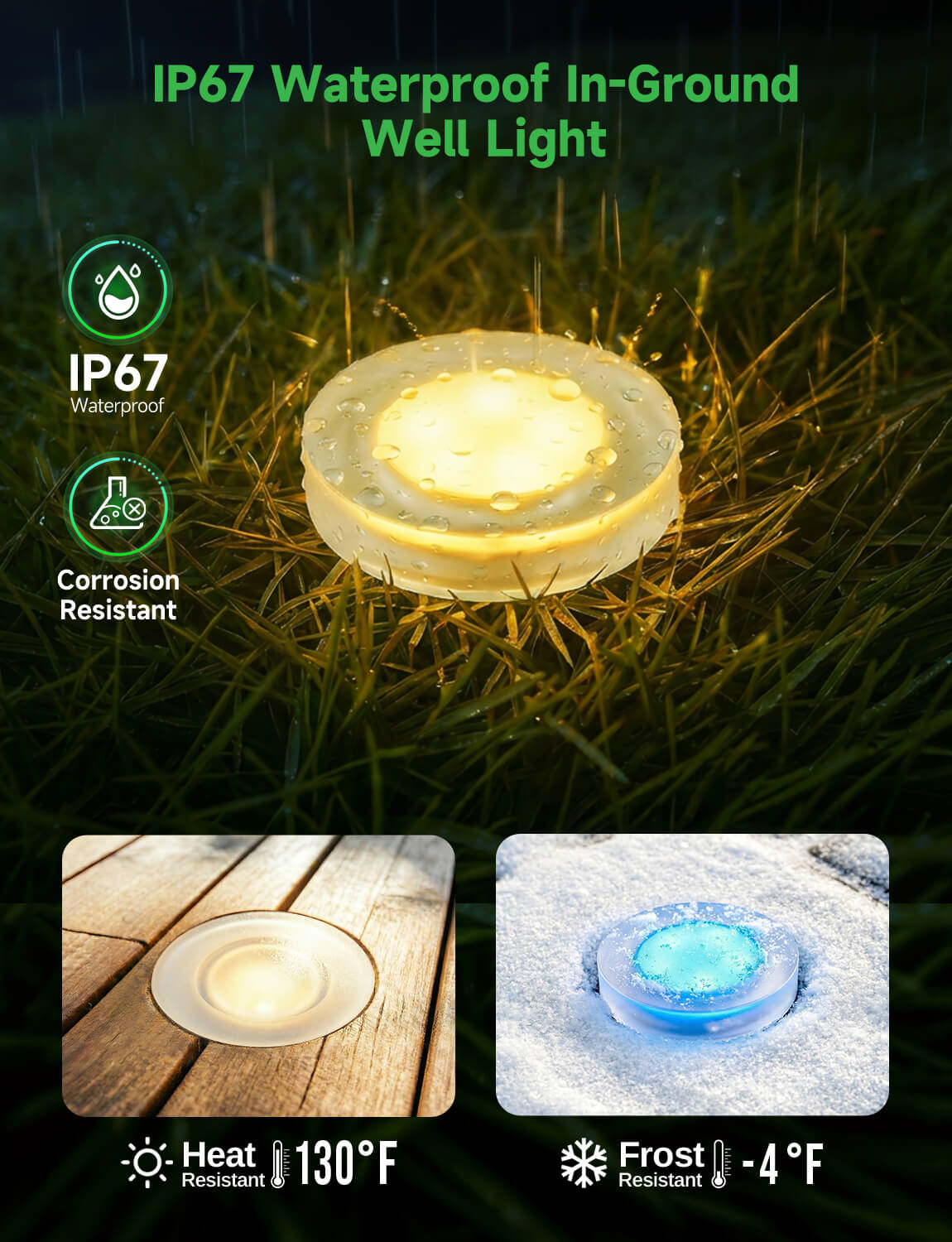

- IP67 in-grade sealing for rain, sprinklers, and debris
- DIY-friendly 12V: works with standard low-voltage transformers
- Value-driven aluminum construction with dependable finishes and support
Choosing the Perfect Well Light: A Quick Buyer’s Guide
- Subject & beam: Tall/narrow targets → 15°–30°; broader washes → 36°–60°.
- CCT mood: 1800–3000K for warm residential ambience; neutral/cool whites emphasize textures on stone/brick.

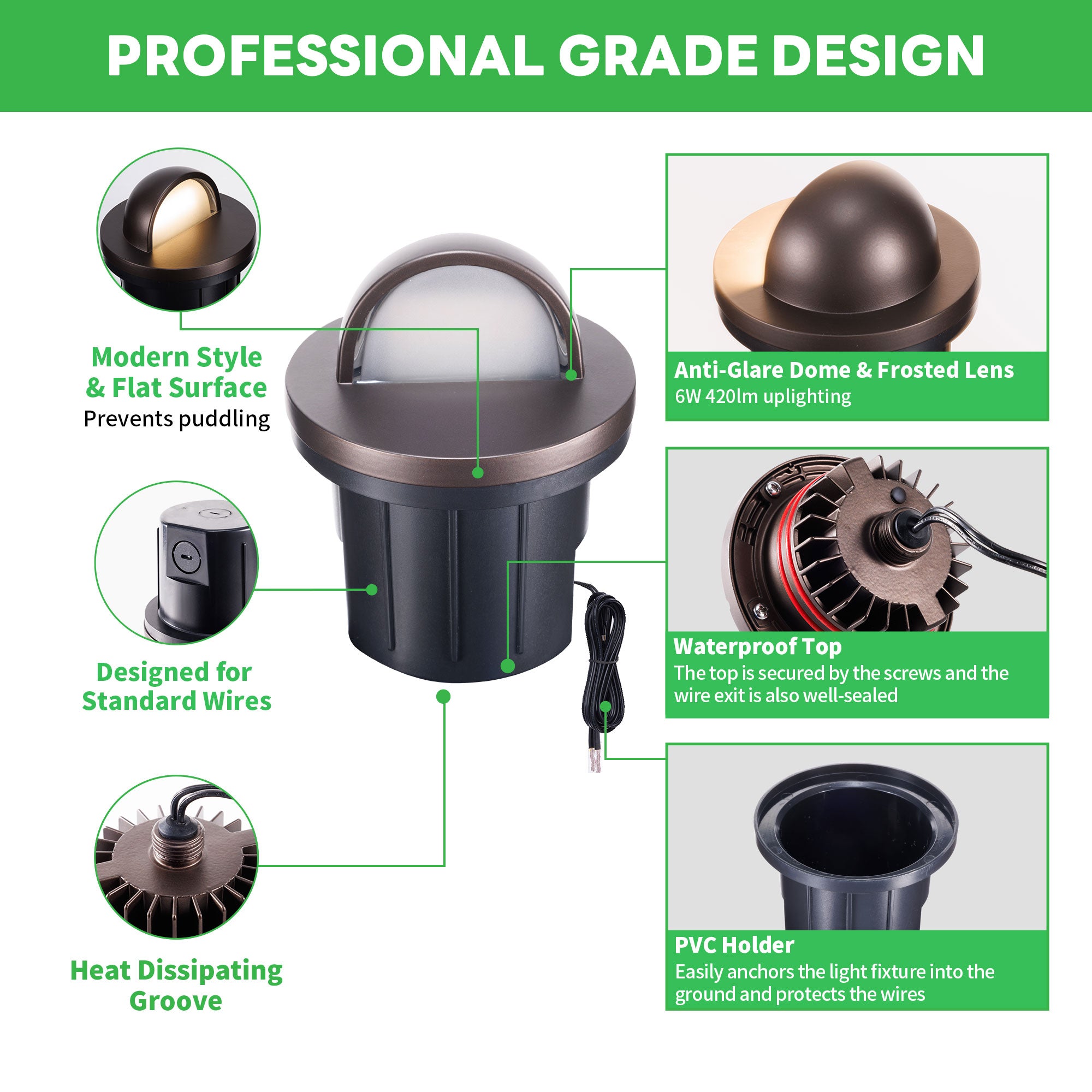

- Glare & shielding: Use shield/turret/graded tops or internal honeycomb to shield direct view near paths/windows.
- Placement & spacing: For wall wash, start 12–24 in (30–60 cm) off the wall; trees vary by canopy height (often 0.6–1.2 m from trunk, aim to the focal bark/branch junction).
- Power & wiring: Sum total watts and size a 12V transformer with ~20–30% headroom; use 12/14 AWG on long runs and balance near/away fixtures to limit voltage drop.
- Drainage is non-optional: Always set fixtures on gravel with a sleeve where applicable; avoid water pooling.
